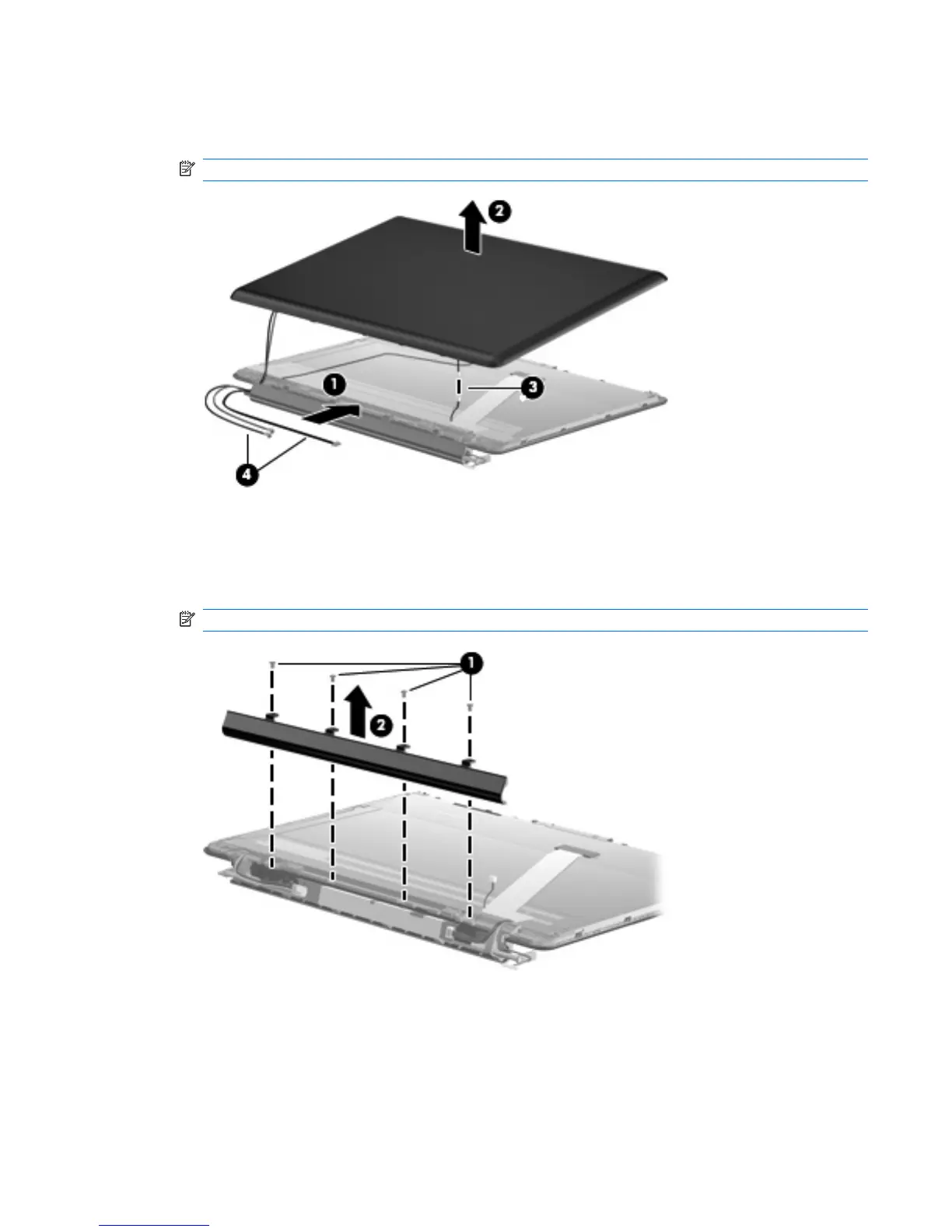

9. Disconnect the display logo cable (3) from the display panel cable.
10. Remove the WLAN antenna cables and the webcam cable (4) from the left hinge.
NOTE: You may have to flex the display hinge cover to remove the WLAN cables.
11. If it is necessary to replace the display inverter, remove the four Phillips PM2.5×5.0 screws (1) that
secure the display inverter cover to the display bezel. The display inverter cover is available using
spare part number 533464-001.
12. Remove the display inverter cover (2) by lifting it straight up.
NOTE: You must remove the display inverter cover to free the antenna cables.
13. Remove the display enclosure. The display enclosure is available using spare part number
517861-001 for white computers, and 518774-001 for black computers, and includes the display
logo LED board and the wireless antenna transceivers and cables.
14. If it is necessary to replace the webcam/microphone module, remove the PM2.0x3.0 screw (1) that
secures the webcam/microphone module to the display.
Component replacement procedures 71
