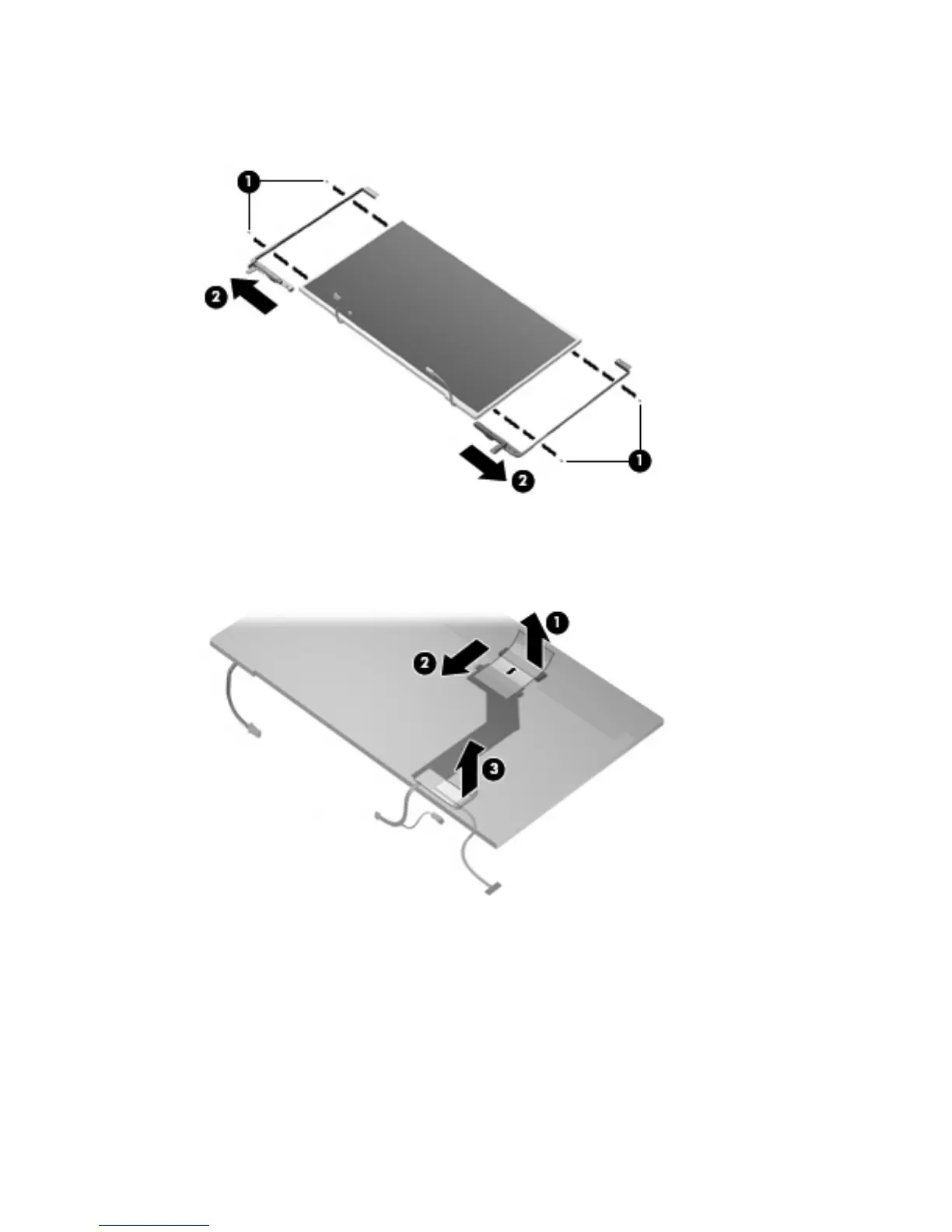

37. Remove the display hinges (2). The display hinges are available in the Display Hinge Bracket Kit,
spare part 512360-001 (16-inch display) or 512365-001 (15.6-inch display). The display hinge
screws are available in the Display Screw Kit, spare part number 512362-001.
38. If it is necessary to remove the display panel cable, remove the adhesive reinforcement strip (1)
from the display panel cable, and disconnect the display panel cable (2). Remove the tape (3) that
secures the cable to the display panel. The display panel cable is available using spare part number
512825-001.
Reverse this procedure to reassemble and install the display assembly.
