Left side

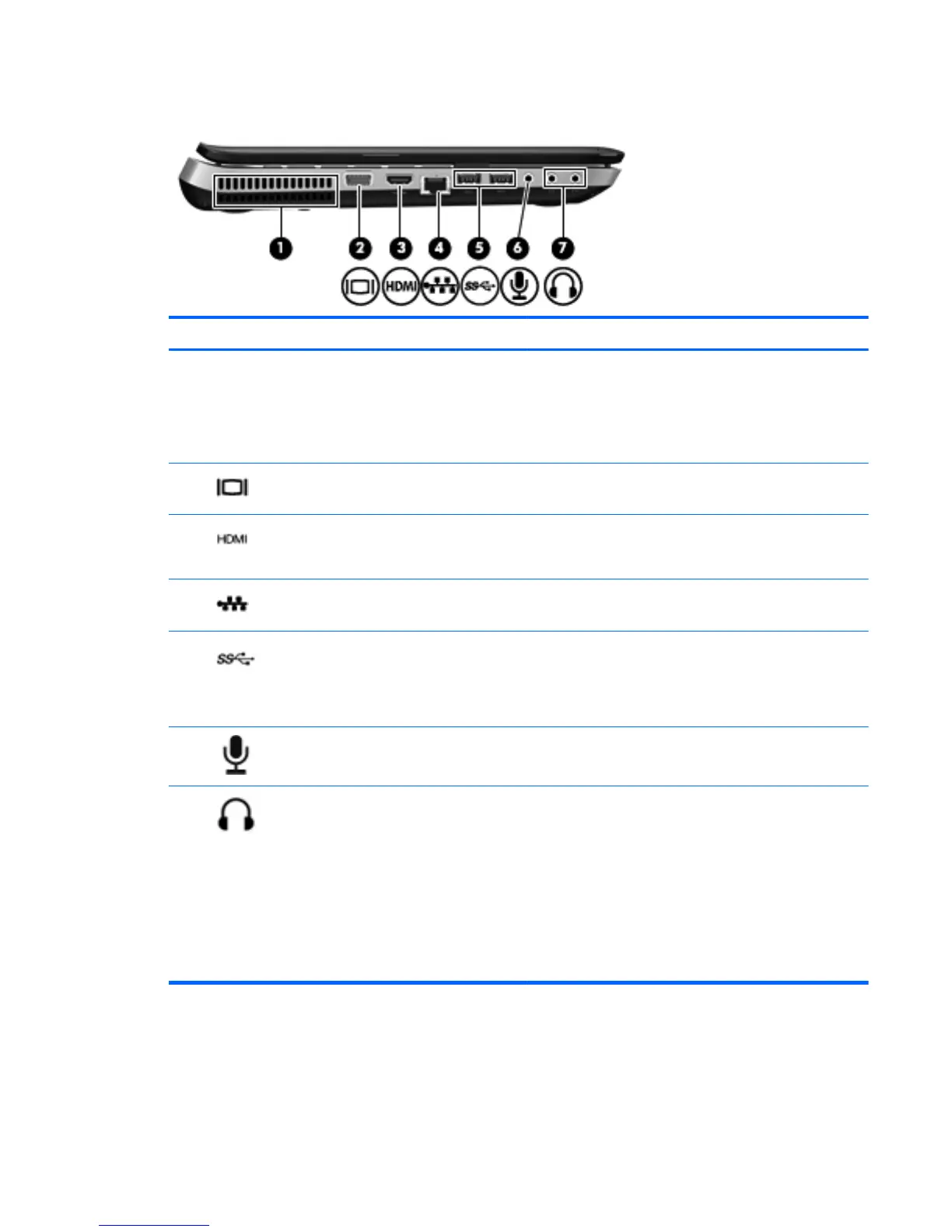

Component Description
(1) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(2)
External monitor port Connects an external VGA monitor or projector.
(3)
HDMI port Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or audio
component.
(4)
RJ-45 (network) jack Connects a network cable.
(5)
SuperSpeed USB ports (2) Connect optional USB 3.0 devices (select models only) and
provide enhanced USB power performance.
NOTE: The SuperSpeed USB ports are also compatible
with USB 1.0 and USB 2.0 devices.
(6)
Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(7)
Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television
audio.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety, and Environmental Notices.
NOTE: When a device is connected to a headphone jack,
the computer speakers are disabled.
Left side
13
