8. Insert a new memory module:
CAUTION: To prevent damage to the memory module, hold the memory module by the edges
only. Do not touch the components on the memory module.

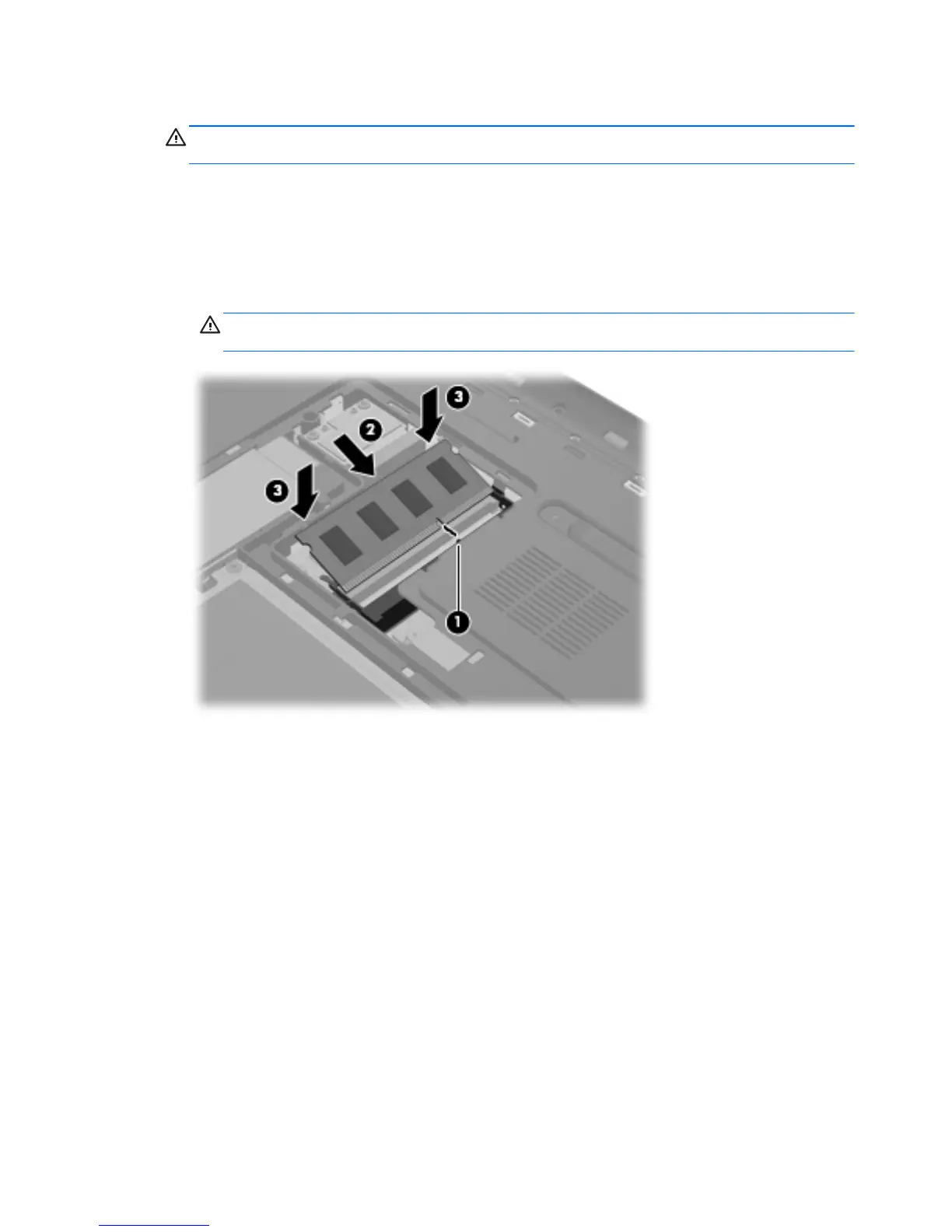

a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module into the memory module slot (2) until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right
edges of the module, until the retention clips snap into place.
CAUTION: To prevent damage to the memory module, be sure that you do not bend the
module.
9. Replace the memory module compartment cover:
a. With the battery bay toward you, position the memory module compartment cover (1) at a
45-degree angle from the surface of the computer so that the tabs on the underside of the
cover align with the matching slots on the computer.
