g. System board (see System board on page 95).
h. Fan/heat sink assembly (see
Fan/heat sink assembly on page 99).

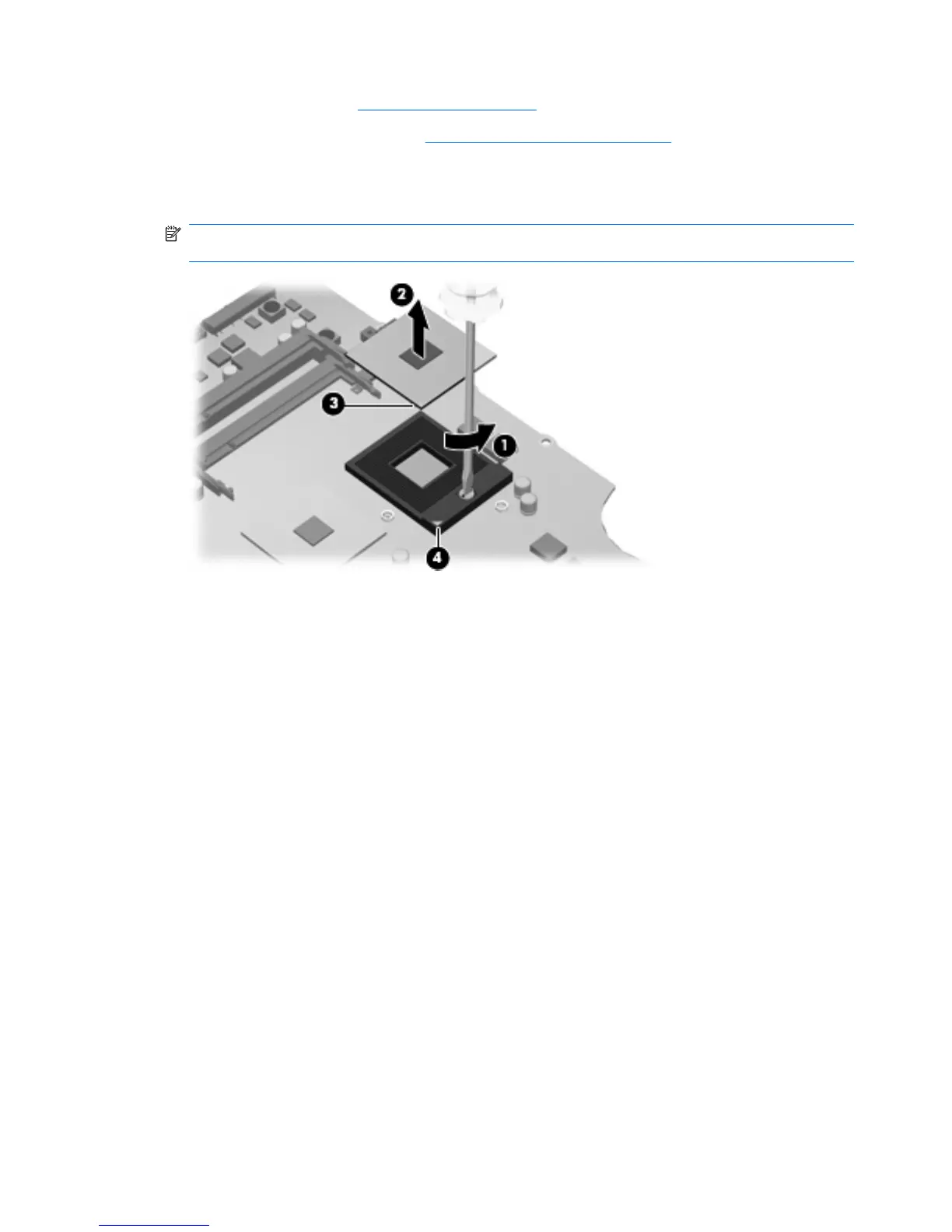

1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
102 Chapter 4 Removal and replacement procedures
