7. If it is necessary to replace the hard drive bracket or any of the hard drive bracket components,
remove the following:

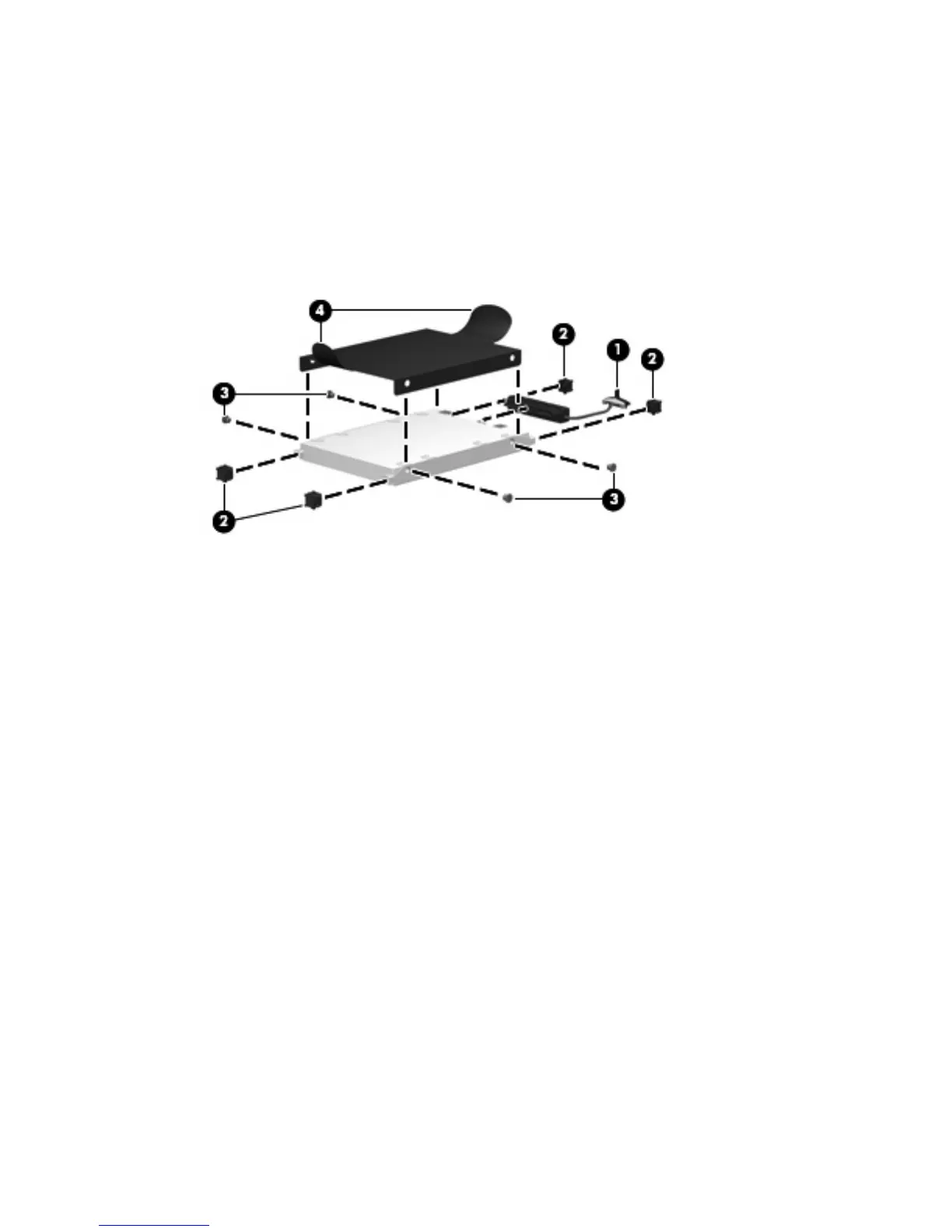

(1) Hard drive connector cable
(2) Four rubber isolators
(3) Four Phillips PM3.0×3.5 screws that secure the hard drive bracket rails and Mylar cover to the
hard drive
(4) Left and right hard drive bracket rails with mylar cover tabs
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 65
