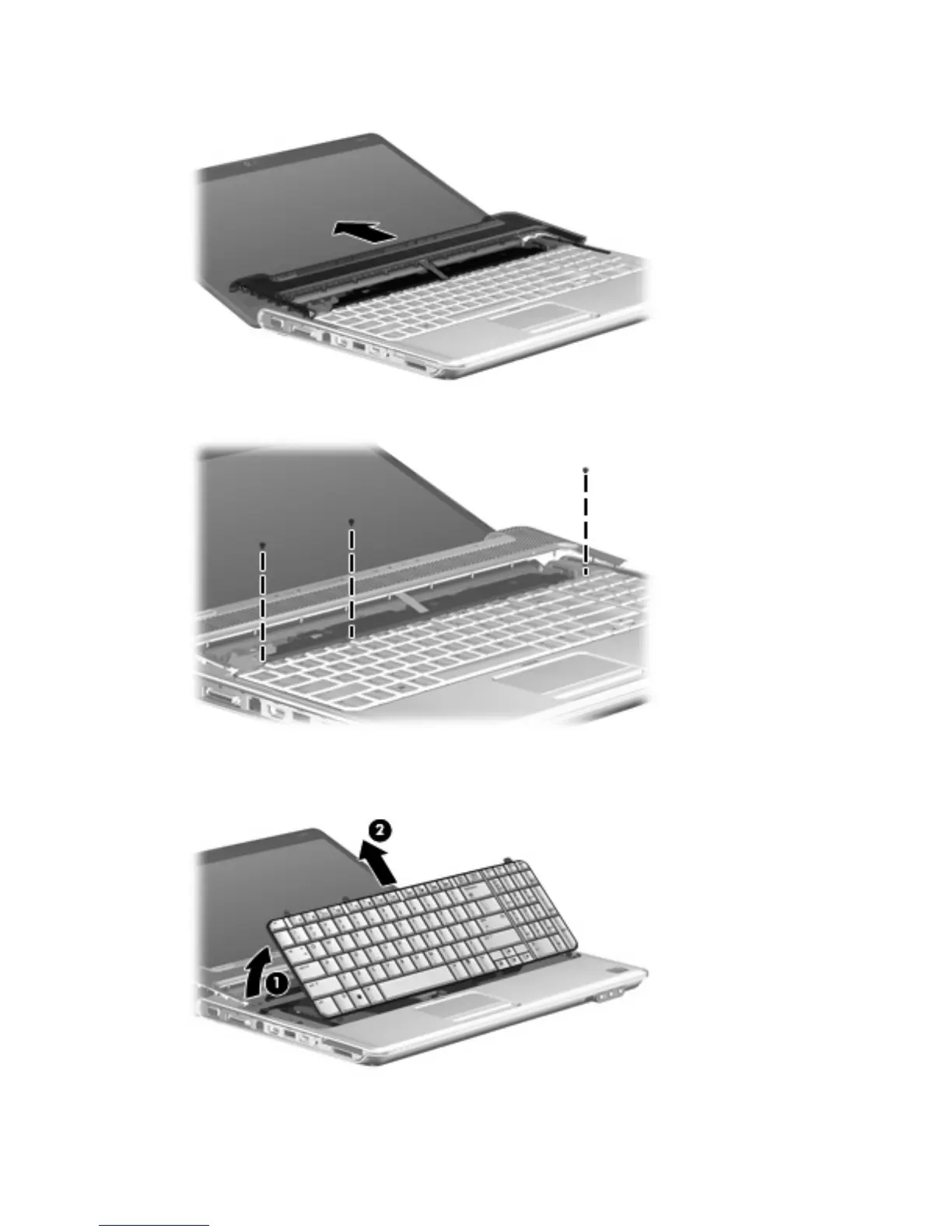

6. Move the switch cover back so it rests on the display.
7. Remove the three Phillips PM2.0×3.0 screws that secure the keyboard to the computer.
8. Lift the rear edge (1) of the keyboard .
9. Slide the keyboard (2) back until the keyboard connector on the system board is accessible.
72 Chapter 4 Removal and replacement procedures
