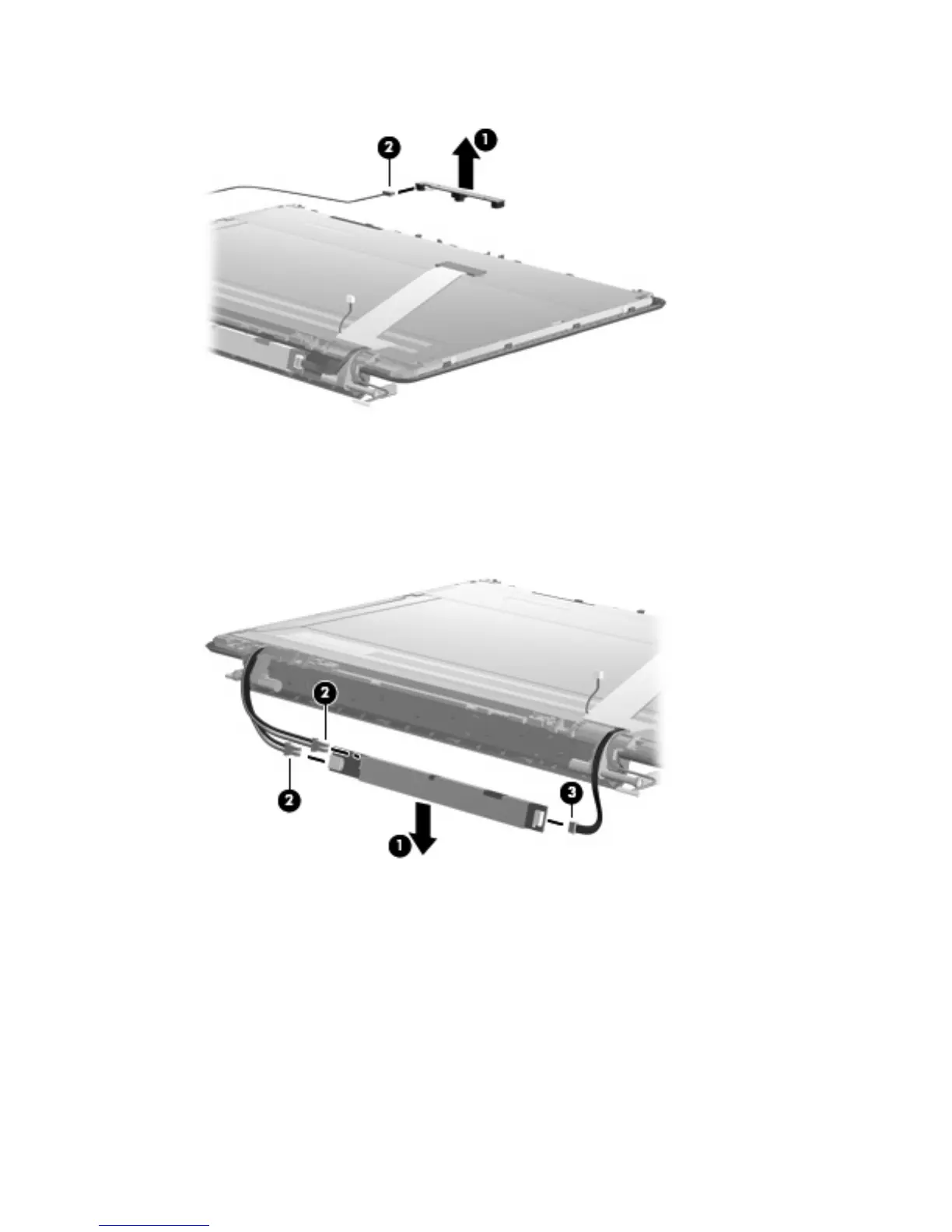

14. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
15. Remove the webcam/microphone module. The webcam/microphone module is available using
spare part number 512827-001.
16. Release the display inverter (1) as far from the display bezel as the display panel cable and
backlight cable allow.
17. Disconnect the backlight cables (2) and display panel cable (3) from the display bezel.
18. Remove the display inverter. The display inverter is available using spare part number
488317-001.
19. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×5.0 screws (1) that
secure the display hinge brackets to the display panel.
Component replacement procedures 79
