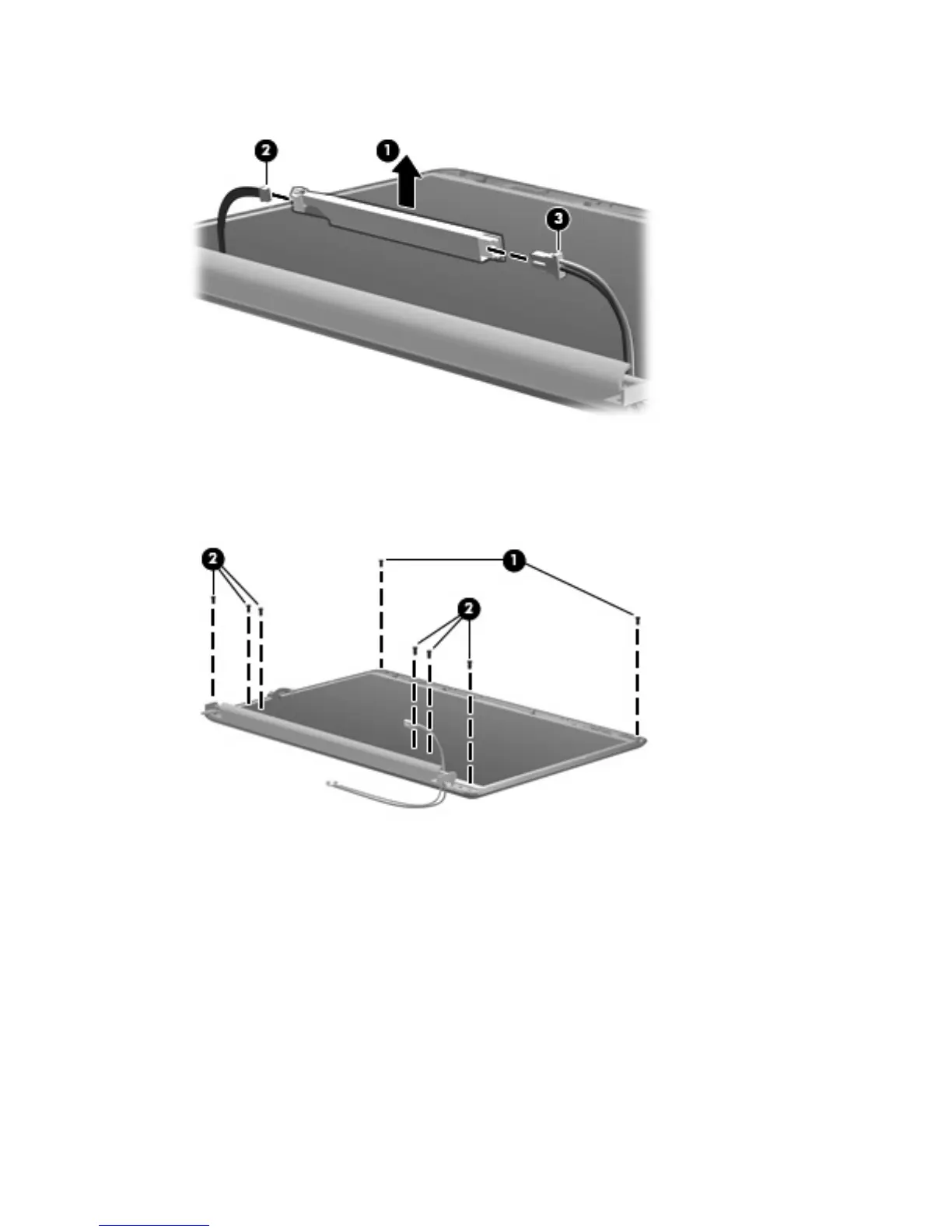

27. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
28. Remove the display inverter. The display inverter is available using spare part number
488317-001.
29. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws (1) from
the top corners and the six Phillips PM2.5×5.0 screws (2) from the display hinges.
82 Chapter 4 Removal and replacement procedures
