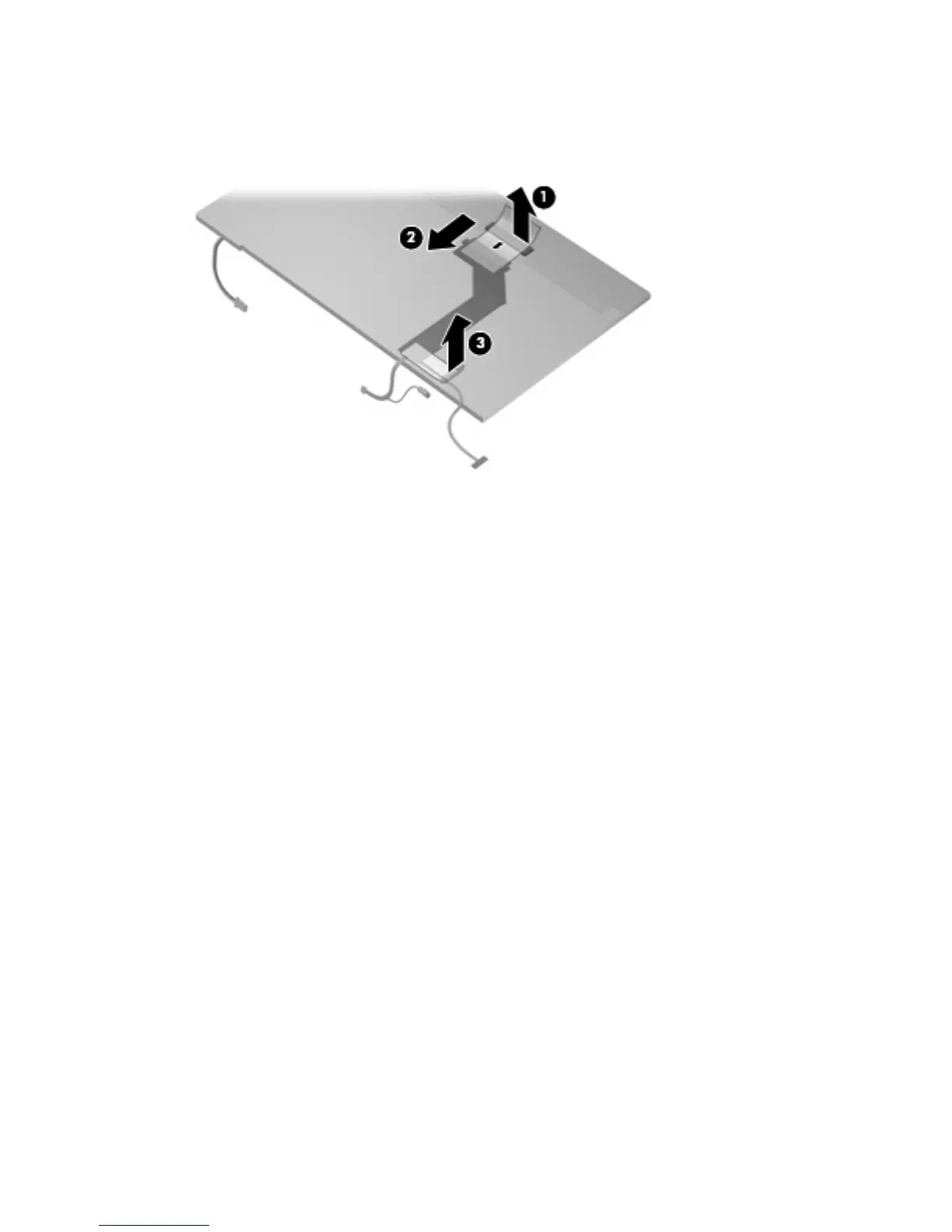

33. If it is necessary to remove the display panel cable, remove the adhesive reinforcement strip (1)
from the display panel cable, and disconnect the display panel cable from the top of the display
panel (2). Remove the tape (3) that secures the cable to the display panel. The display panel cable
is available using spare part number 512825-001.
Reverse this procedure to reassemble and install the display assembly.
