HP Pavilion dv6 - Page 95

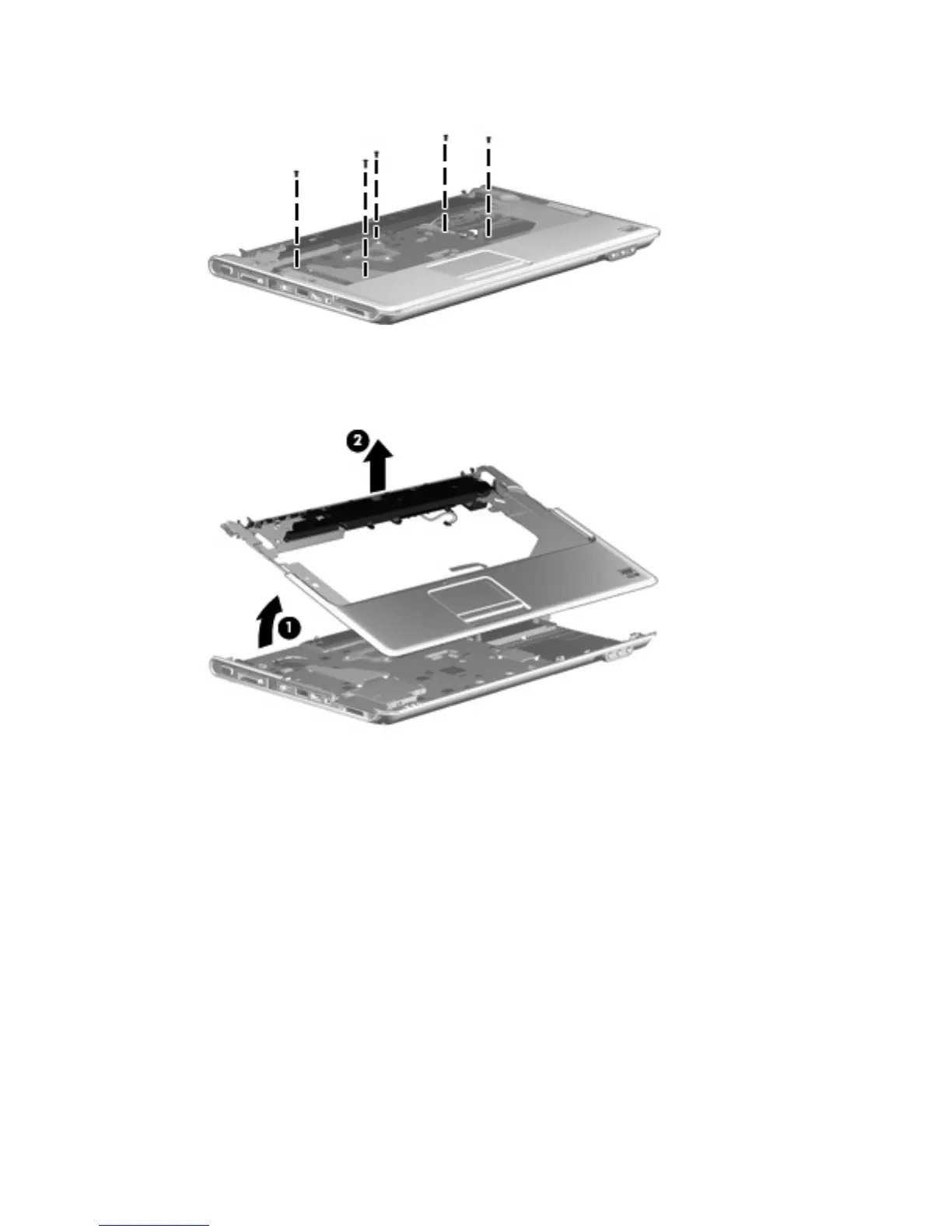

6. Remove the five Phillips PM2.5×4.0 screws that secure the top cover to the computer.
7. Lift the rear edge (1) of the top cover until it rests at an angle.
8. Remove the top cover (2) by lifting it straight up.
Reverse this procedure to install the top cover.
Component replacement procedures 87
