Removal and Replacement Procedures
Maintenance and Service Guide 5–29
9. Release the ZIF connector 1 to which the keyboard cable is
connected and disconnect the keyboard cable 2 from the
system board.

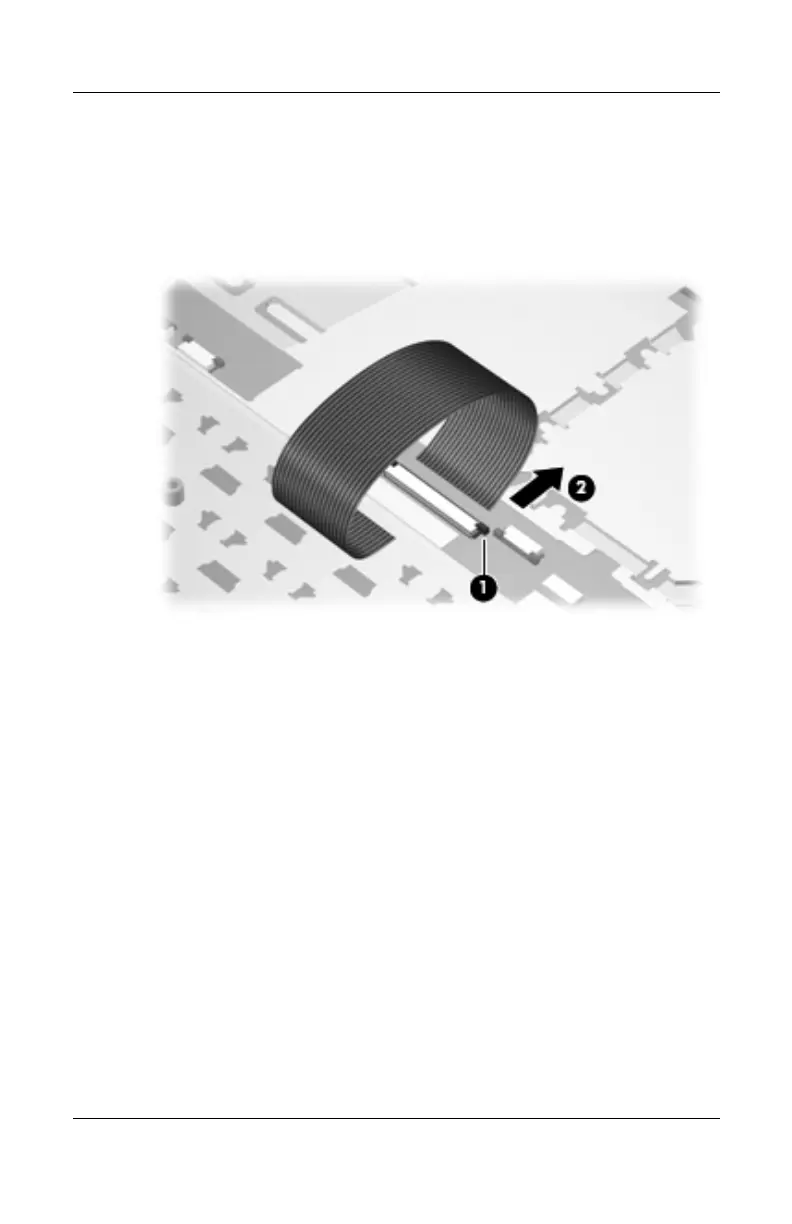

Disconnecting the Keyboard Cable
10. Remove the keyboard.
Reverse the above procedure to install the keyboard.
