Removal and Replacement Procedures
Maintenance and Service Guide 5–41

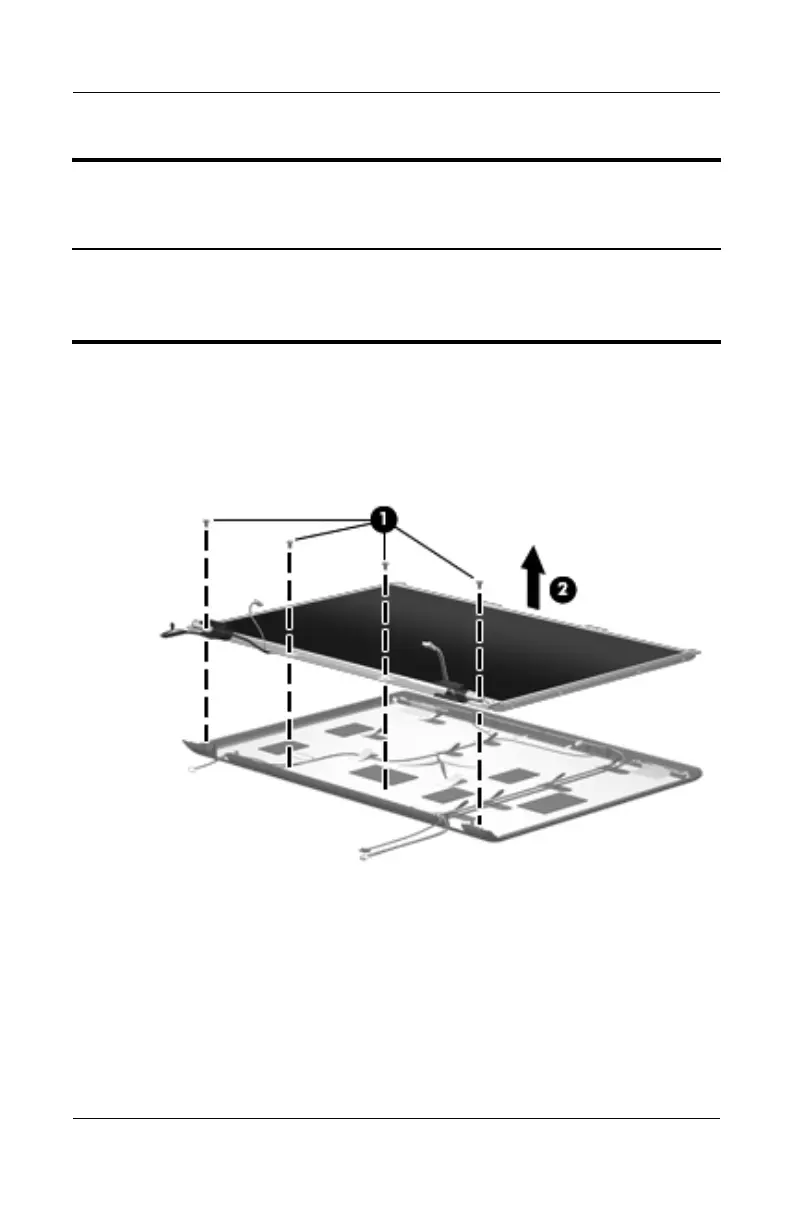

19. Remove the four Phillips PM2.5×5.0 screws 1 that secure the
display panel to the display enclosure.
20. Remove the display panel 2.
Removing the Display Panel
Display Assembly Subcomponents
Spare Part Number Information
Display panels
15.4-inch, WXGA, SVA display panel with BrightView
15.4-inch, WXGA, SVA display panel AntiGlare
431386-001
431387-001
