Removal and Replacement Procedures
Maintenance and Service Guide 5–49
5. Turn the computer right-side up with the front toward you.
6. Release and disconnect the following ZIF cables from the
system board:
1 Power button board cable
2 LED board cable
3 TouchPad cable

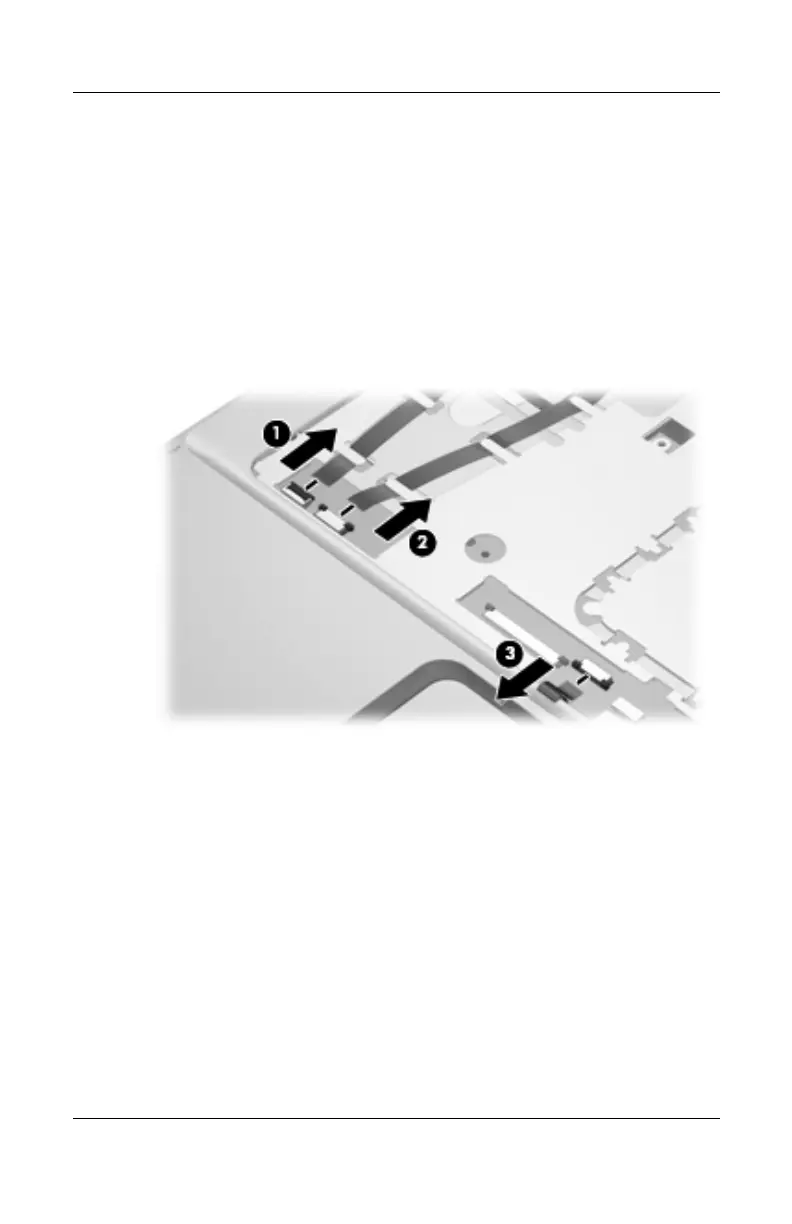

Disconnecting the Top Cover Cables
