g.
Display assembly (see
Display assembly on page 68).
h. System board (see
System board on page 78).
i.
Fan/heat sink assembly (see
Fan/heat sink assembly on page 89).

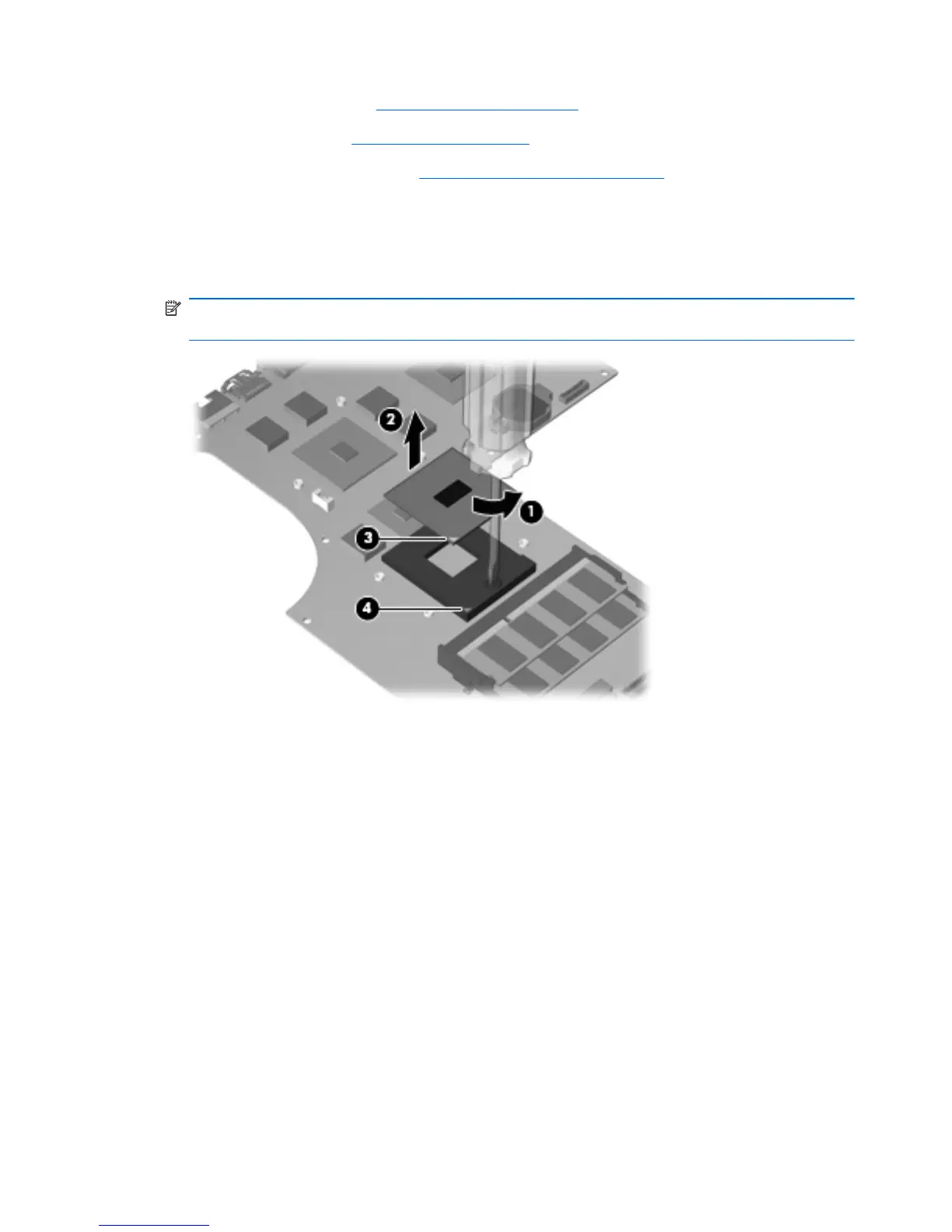

Remove the processor:
1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle icon (4) embossed on the processor socket.
Reverse this procedure to install the processor.
94 Chapter 4 Removal and replacement procedures ENWW
