e.
Top cover (see
Top cover on page 62).
f. Display assembly (see
Display assembly on page 68).

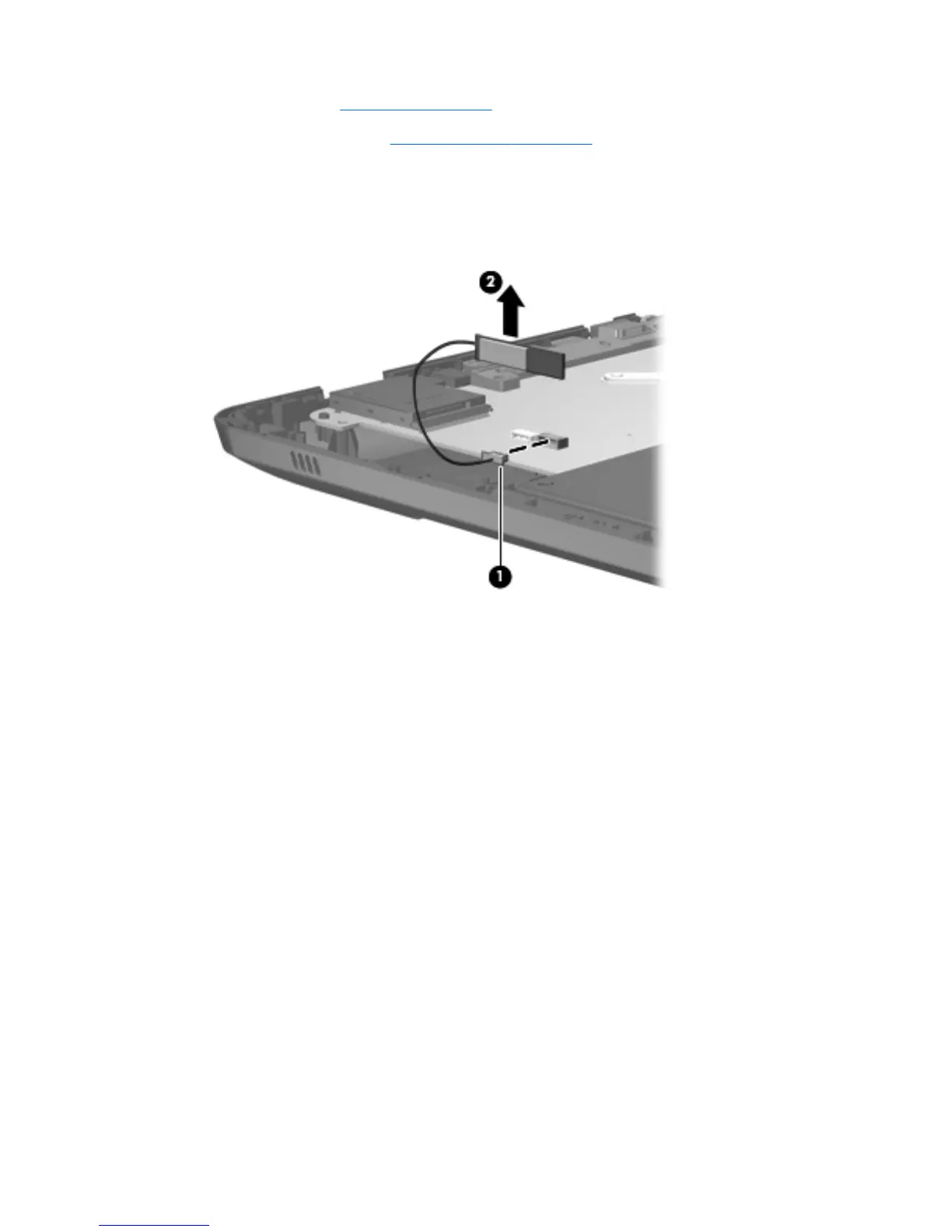

Remove the Bluetooth module:
1. Disconnect the Bluetooth module cable (1) from the system board.
2. Slide the Bluetooth module out of the slot and remove the module (2) from the computer.
Reverse this procedure to install the Bluetooth module.
ENWW
Component replacement procedures
83
