HP PAVILION G6

7.

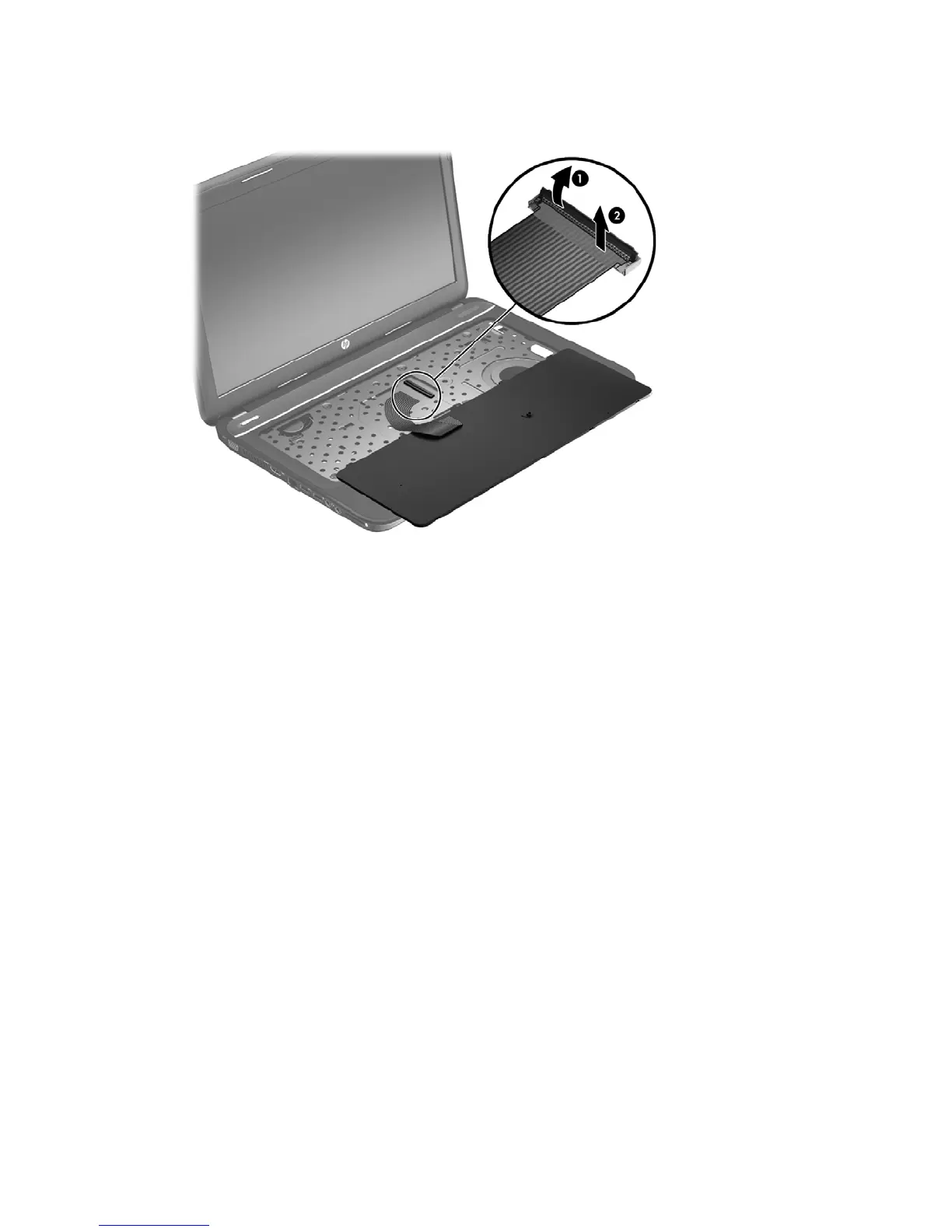

Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
then disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
56 Chapter 4 Removal and replacement procedures ENWW
