4.
Turn the computer upside down, with the front toward you.

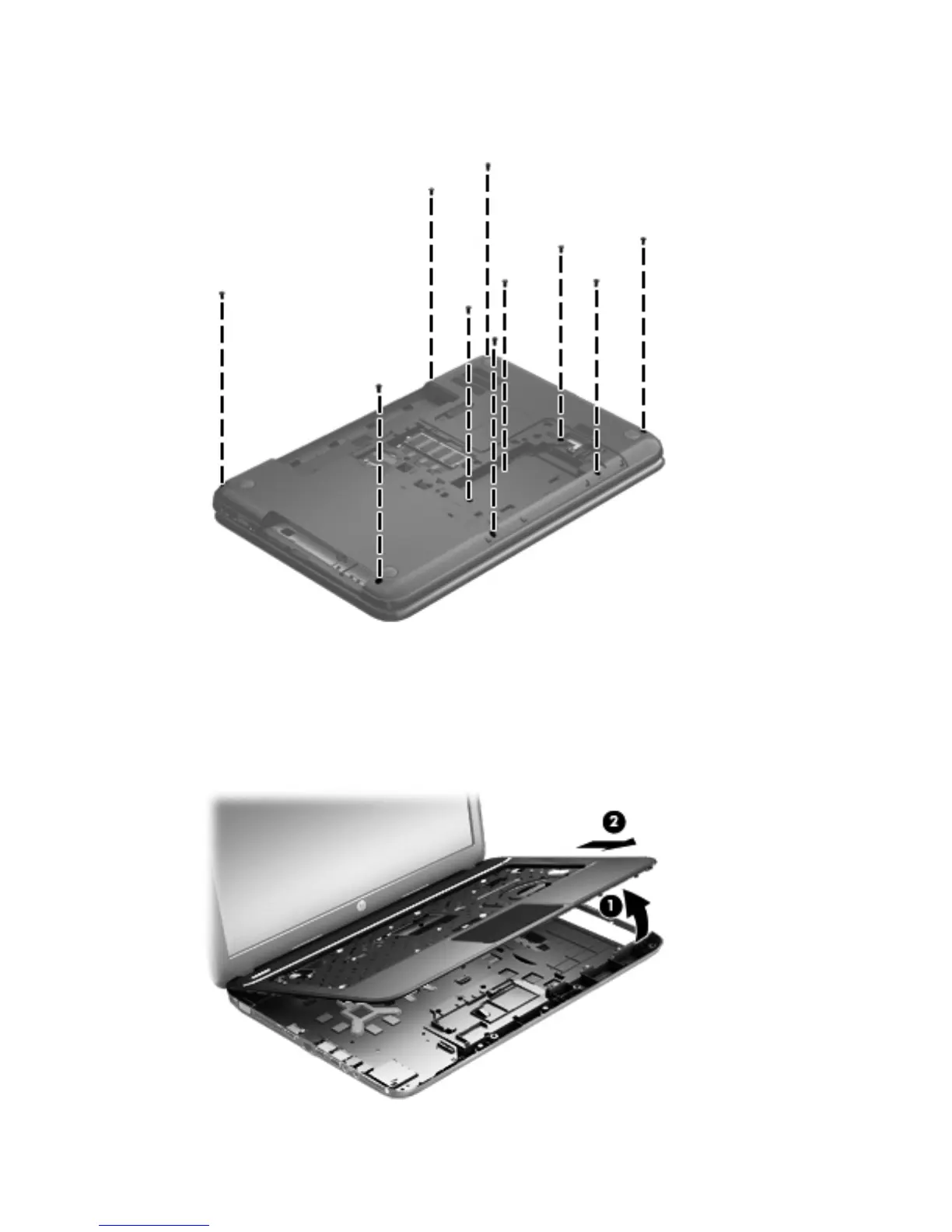

5. Remove the following Nine PM 2.5 x 6.5 screws that secure the top cover to the computer.
6. Turn the computer right-side up, with the front toward you.
7. Open the computer.
8. Lift the front edge of the top cover (1) until the left and right sides disengage from
the base enclosure.
9.
Remove the top cover (2).
ENWW
Component replacement procedures
59
