5.

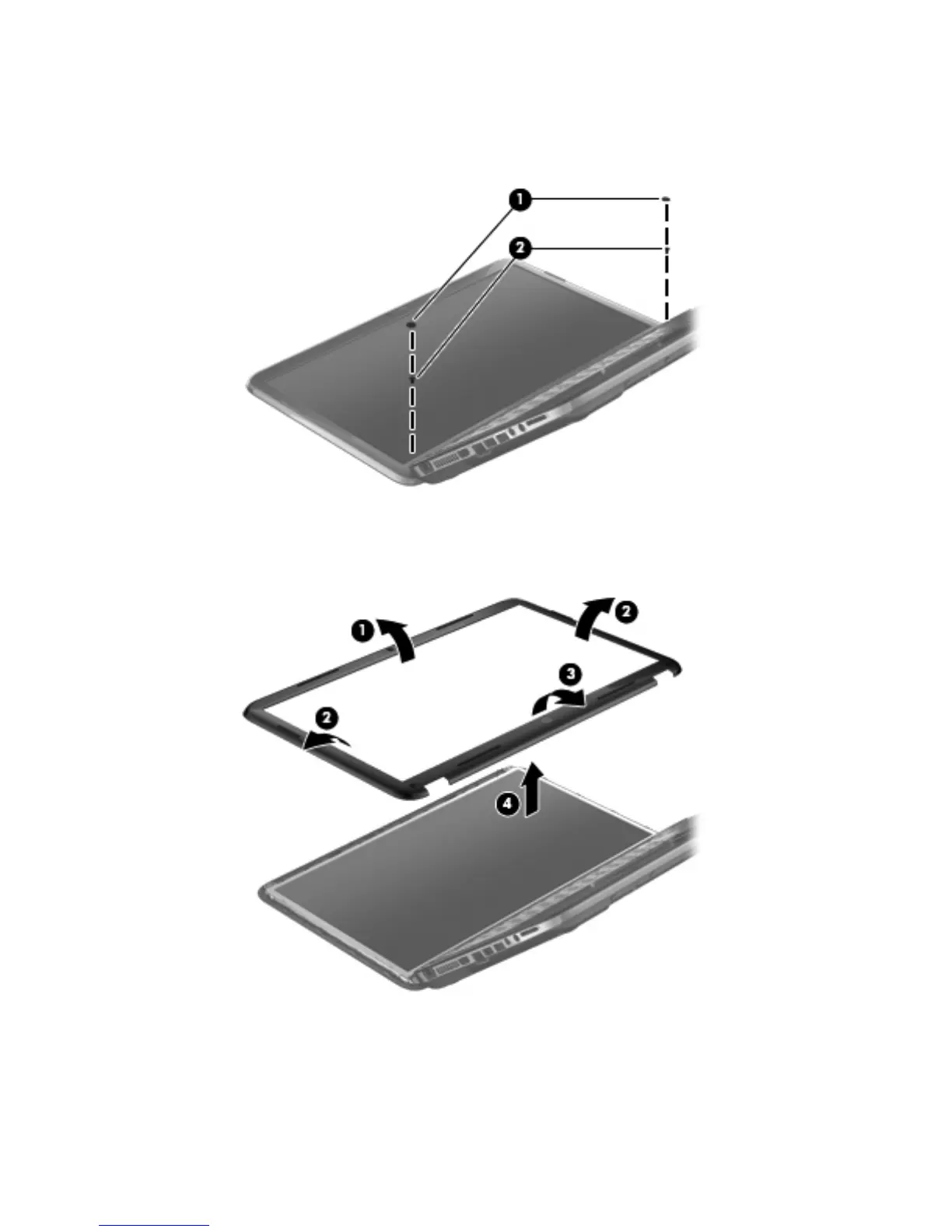

If it is necessary to replace the display bezel or any of the display assembly sub-components:
a. Remove the plastic screw covers (1) and the two PM 2.5 × 3.5 screws (2) that secure
the display bezel to the display assembly.
b.
Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom
edge (3) of the display bezel until the bezel disengages from the display enclosure.
c.
Remove the display bezel (4).
ENWW
Component replacement procedures
69
