6.

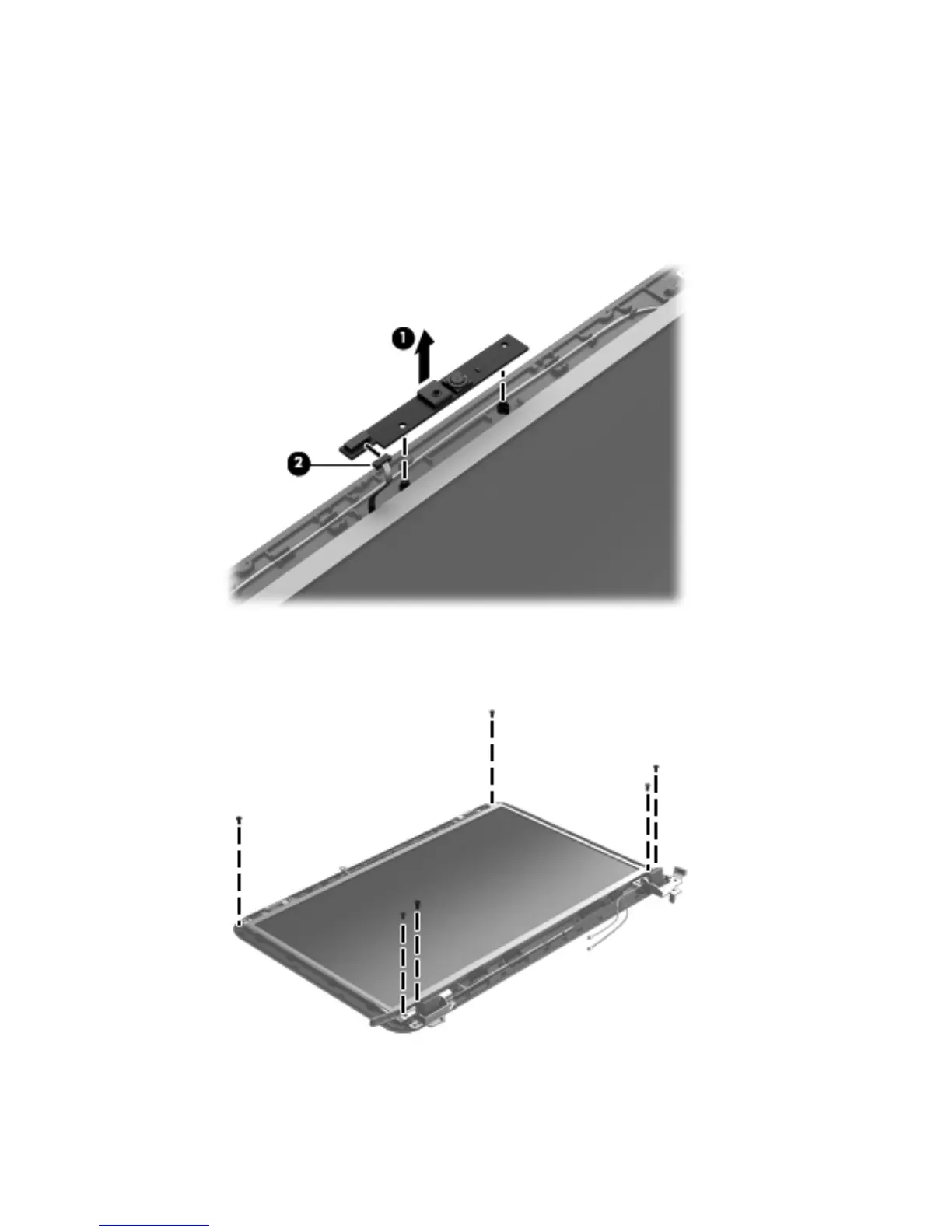

If it is necessary to replace the webcam/microphone module:
a. Detach and release the webcam/microphone module (1) as far as the webcam/microphone
module cable allows. (The webcam/microphone module is attached to the display enclosure
with double-sided tape.)
b. Disconnect the webcam/microphone cable (2) from the webcam/microphone module.
c. Remove the webcam/microphone module.
7.
If it is necessary to replace the display panel:
a. Remove the six PM 2.5 × 6.0 screws that secure the display panel to the display enclosure.
70 Chapter 4 Removal and replacement procedures ENWW
