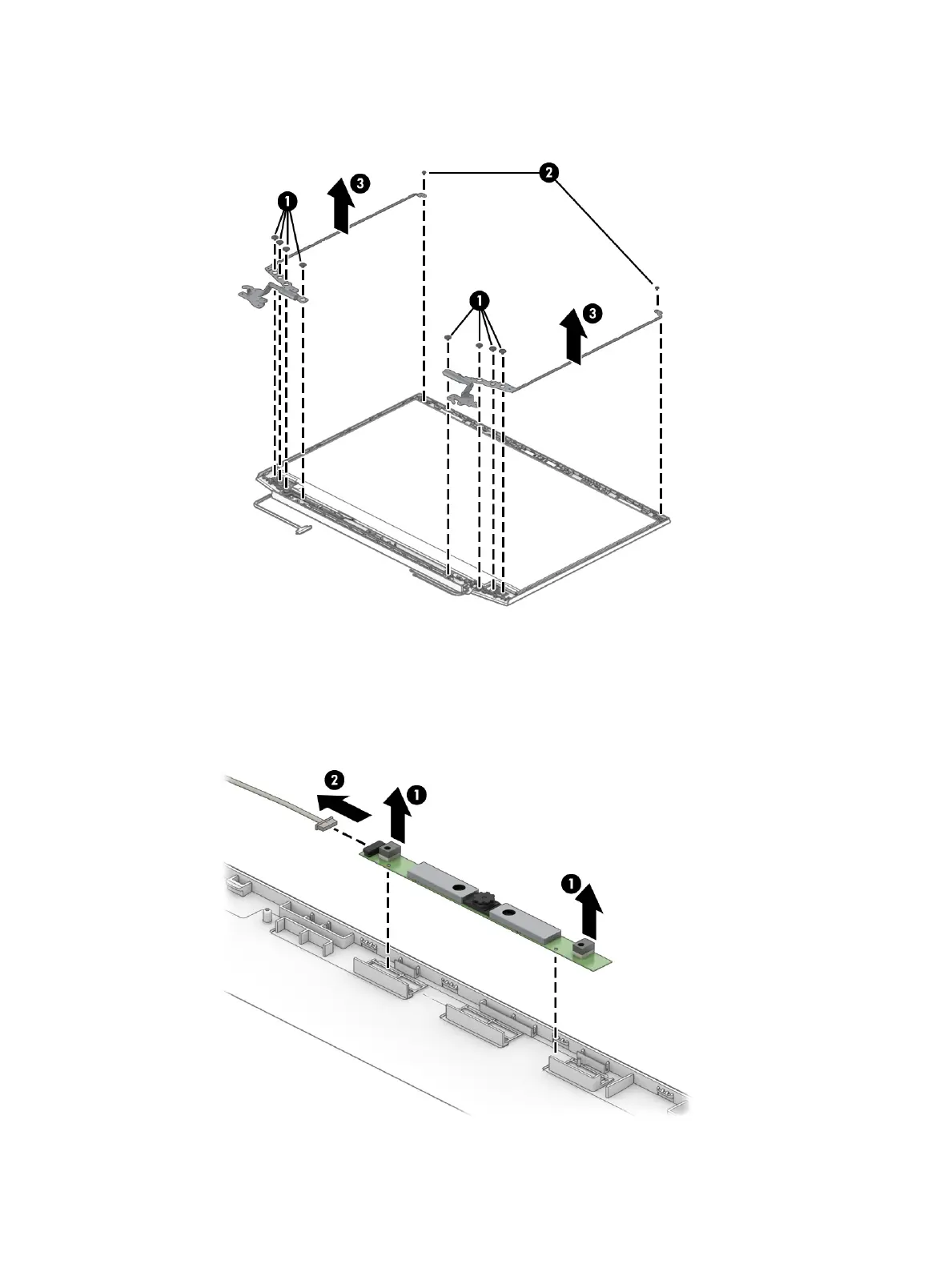

c. Remove the display hinges from the display (3).
The display hinges are available using spare part number L72710-001.
9. If it is necessary to remove the webcam module:
▲ Lift evenly on both sides of the webcam module to detach the it from the display back cover (1),
and the disconnect the cable from the module (2). (The webcam module is attached to the display
back cover with double-sided adhesive.)
The webcam is available using spare part number L72721-001.
54 Chapter 6 Removal and replacement procedures for authorized service provider parts
