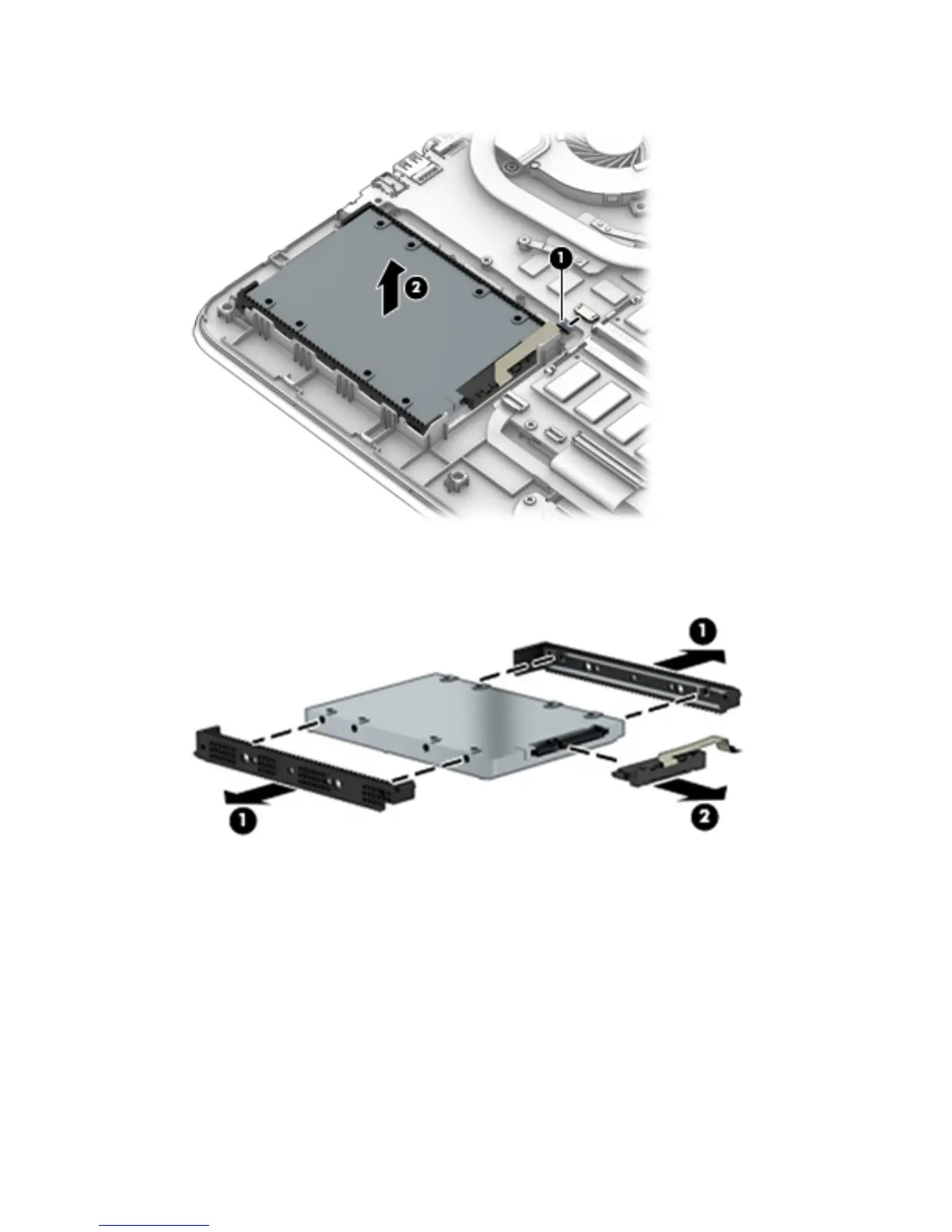

2. Lift the hard drive from the computer (2).
3. To disassemble the hard drive, pull the brackets away from each side of the hard drive (1).
4. Disconnect the hard drive connector and cable from the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
42 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
