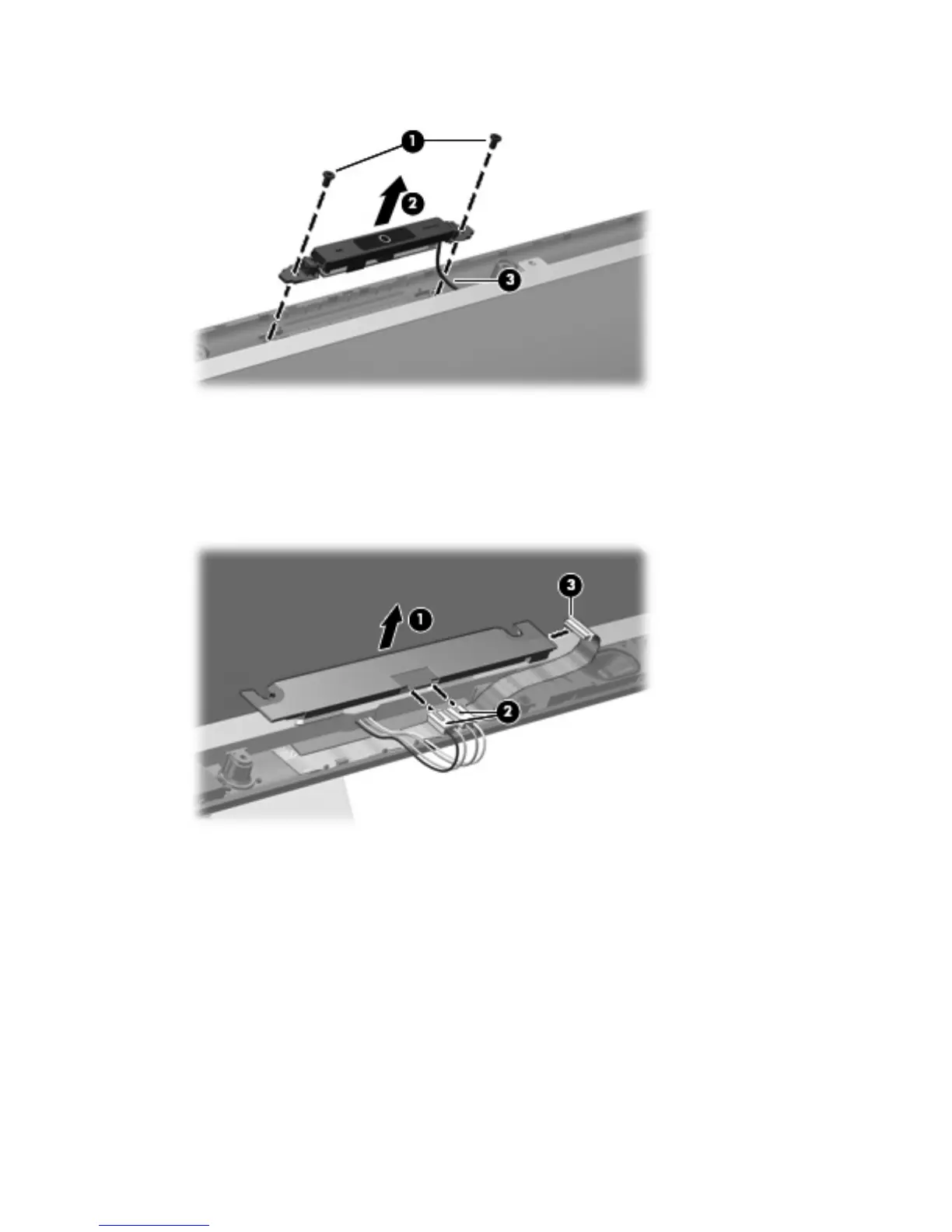

12. Disconnect the camera module cable (3) from the camera module.
13.
Remove the camera module. The camera module is available using spare part number
452304-001.
14. If it is necessary to replace the display inverter, remove the display inverter (1) from the display
enclosure as far as the two display inverter cables and the backlight cable allow.
15. Disconnect the two display panel cables (2) and the backlight cable (3) from the display inverter.
16.
Remove the display inverter. The display inverter is available using spare part number
452308-001.
40 Chapter 4 Removal and replacement procedures
