Before removing the hinge cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 36).
Remove the hinge cover:
1.
Position the computer with the rear panel toward you.

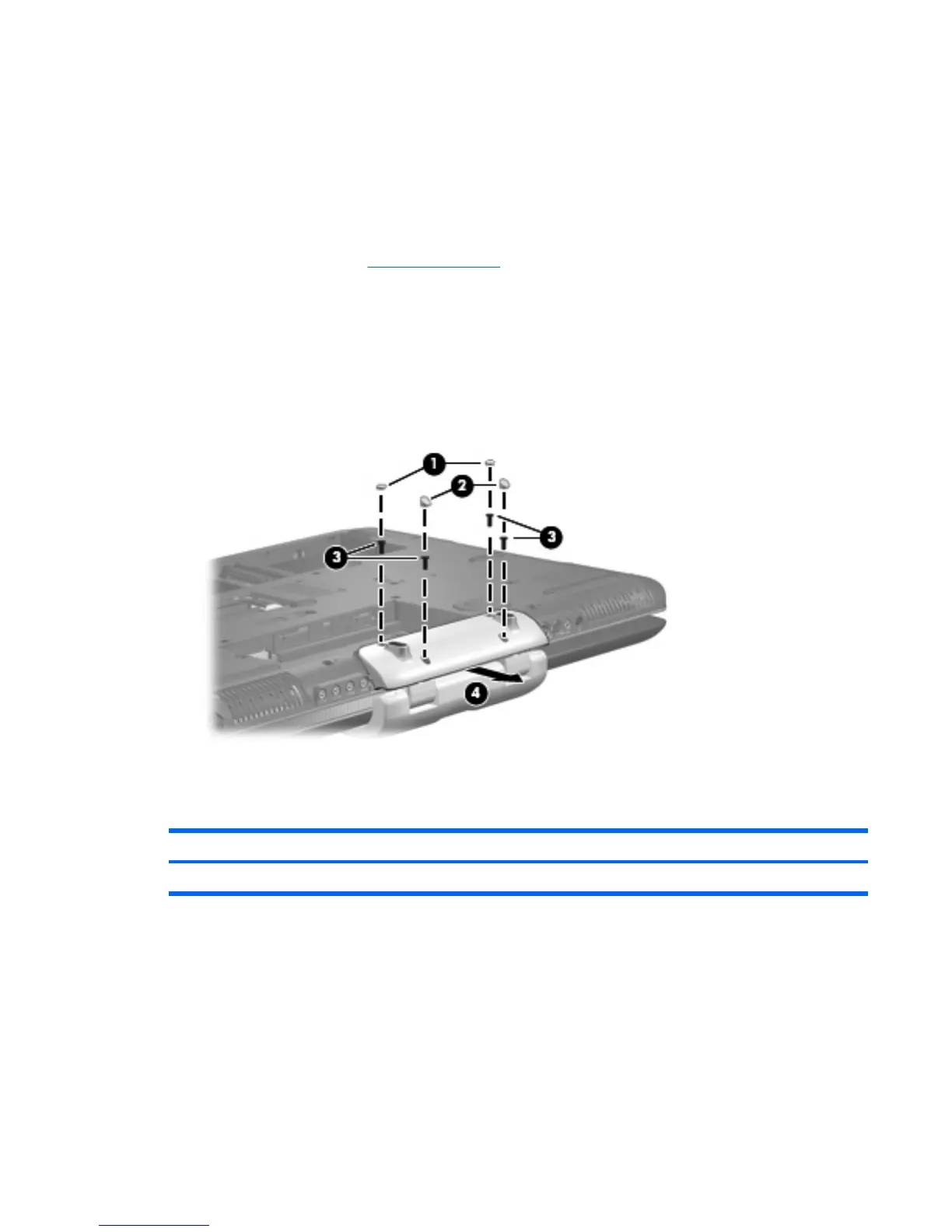

2. Remove the four gray rubber screw covers (1) and (2) from the hinge cover. The screw covers come
in two different sizes and are available in the Rubber Feet Kit, spare part number 452320-001.
3. Remove the four Phillips PM3.0×8.0 screws (3) that secure the hinge cover to the computer.
4. Remove the hinge cover (4) by pulling it away from the computer.
Reverse this procedure to install the hinge cover.
Rear cover
Description Spare part number
Rear cover 448161-001
Before removing the rear cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Component replacement procedures 53
