b.

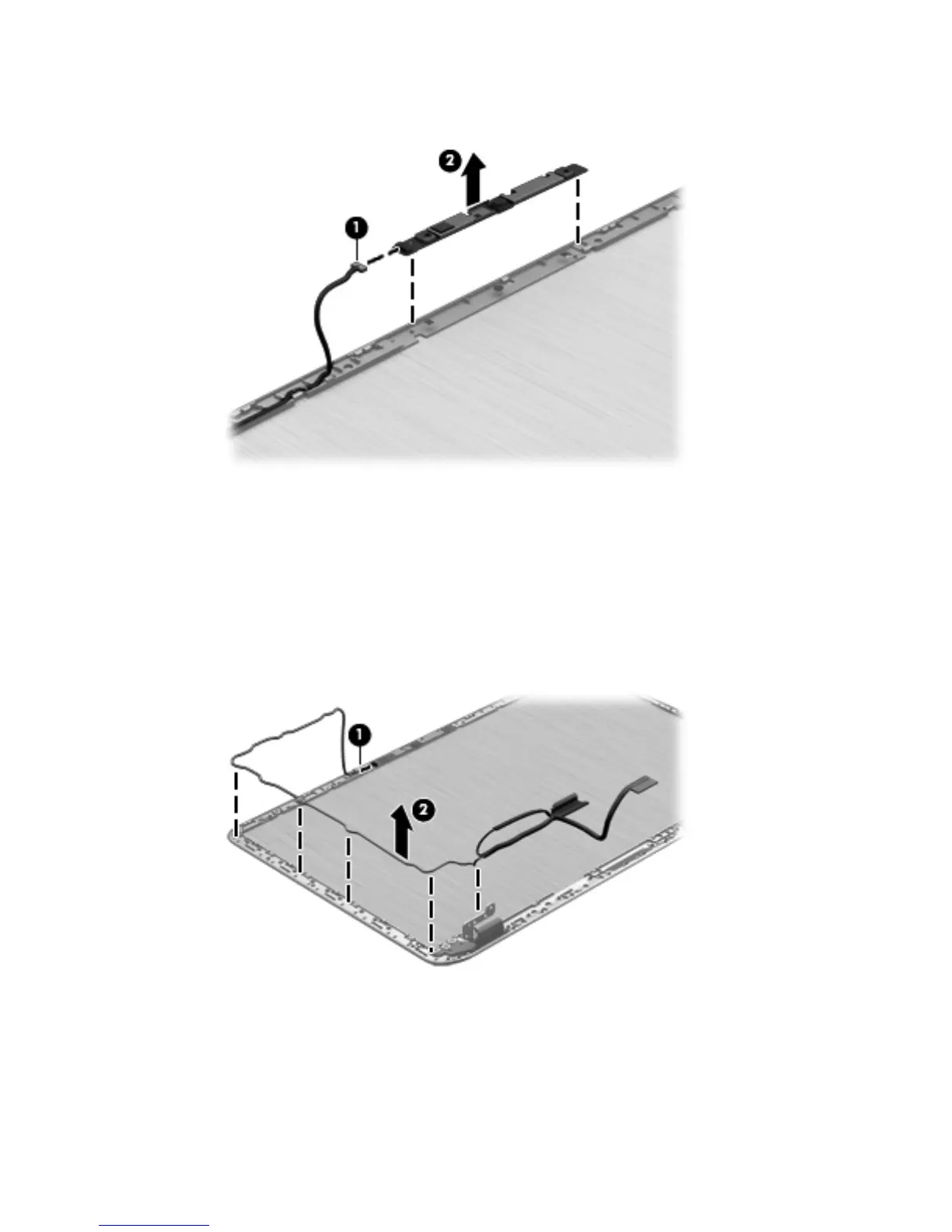

Detach the webcam/microphone module (2) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided tape.)
c. Remove the webcam/microphone module. The webcam/microphone module is available
using spare part number 686587-001.
14. If it is necessary to replace the display panel cable:
a. Disconnect the webcam/microphone module cable (1) from the webcam/
microphone module.
b. Release the display panel cable (2) from the clips and routing channel built into
display enclosure.
c. Remove the display panel cable. The display panel cable is available using spare part
number 686898-001.
15.
If it is necessary to replace the display hinges:
a. Remove the six Phillips 2.5×3.0 broad head screws (1) that secure the display hinges to the
display enclosure.
98 Chapter 4 Removal and replacement procedures
