3.

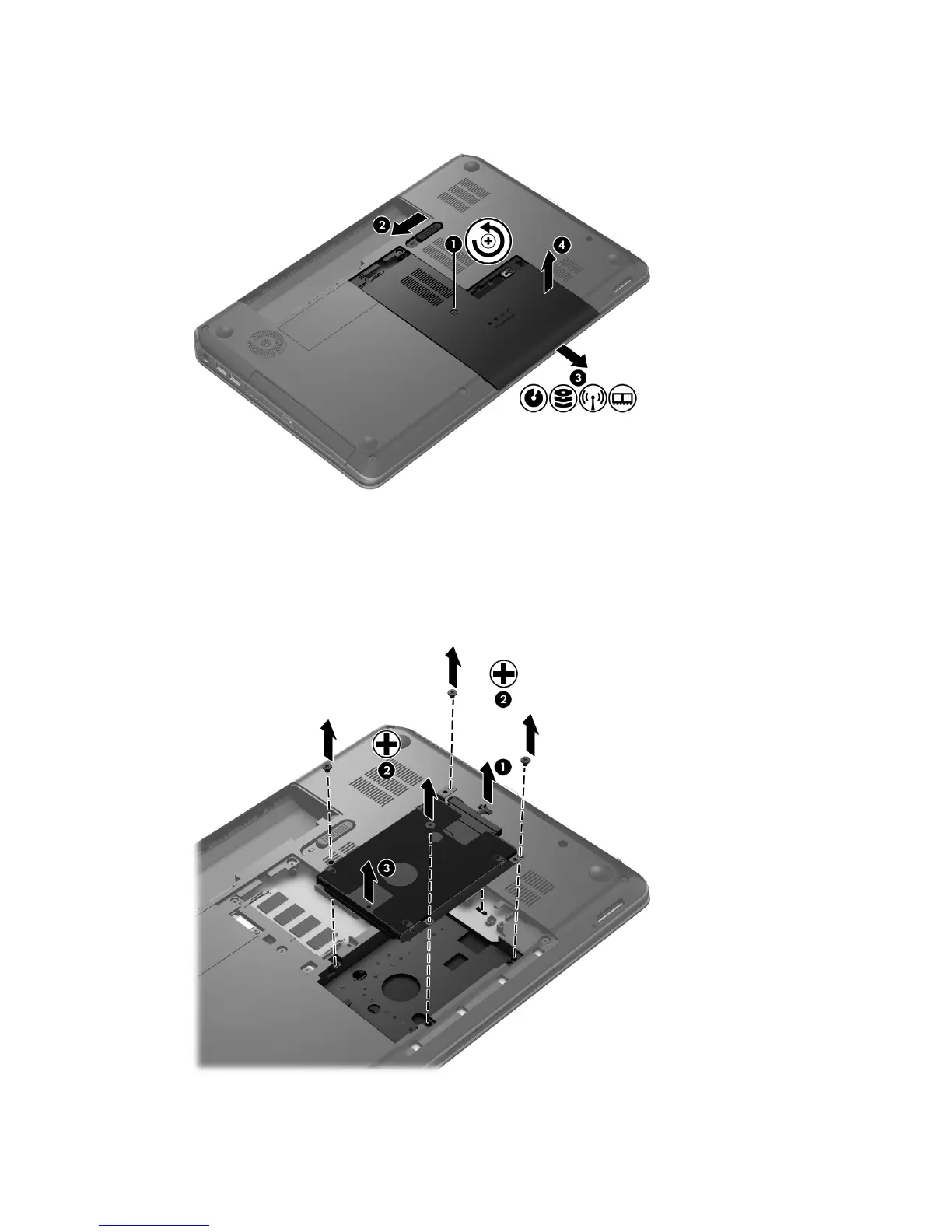

Remove the service cover (4) by lifting it straight up. The service cover is available in the Service
Cover Kit, spare part number 686920-001.
4. Disconnect the hard drive connector cable (1) from the system board, and then release the cable
from the space between the hard drive and the right side of the hard drive bay.
5. Remove the four Phillips PM2.5×3.5 screws (2) that secure the hard drive to the computer.
6. Remove the hard drive (3) from the hard drive bay.
50 Chapter 4 Removal and replacement procedures
