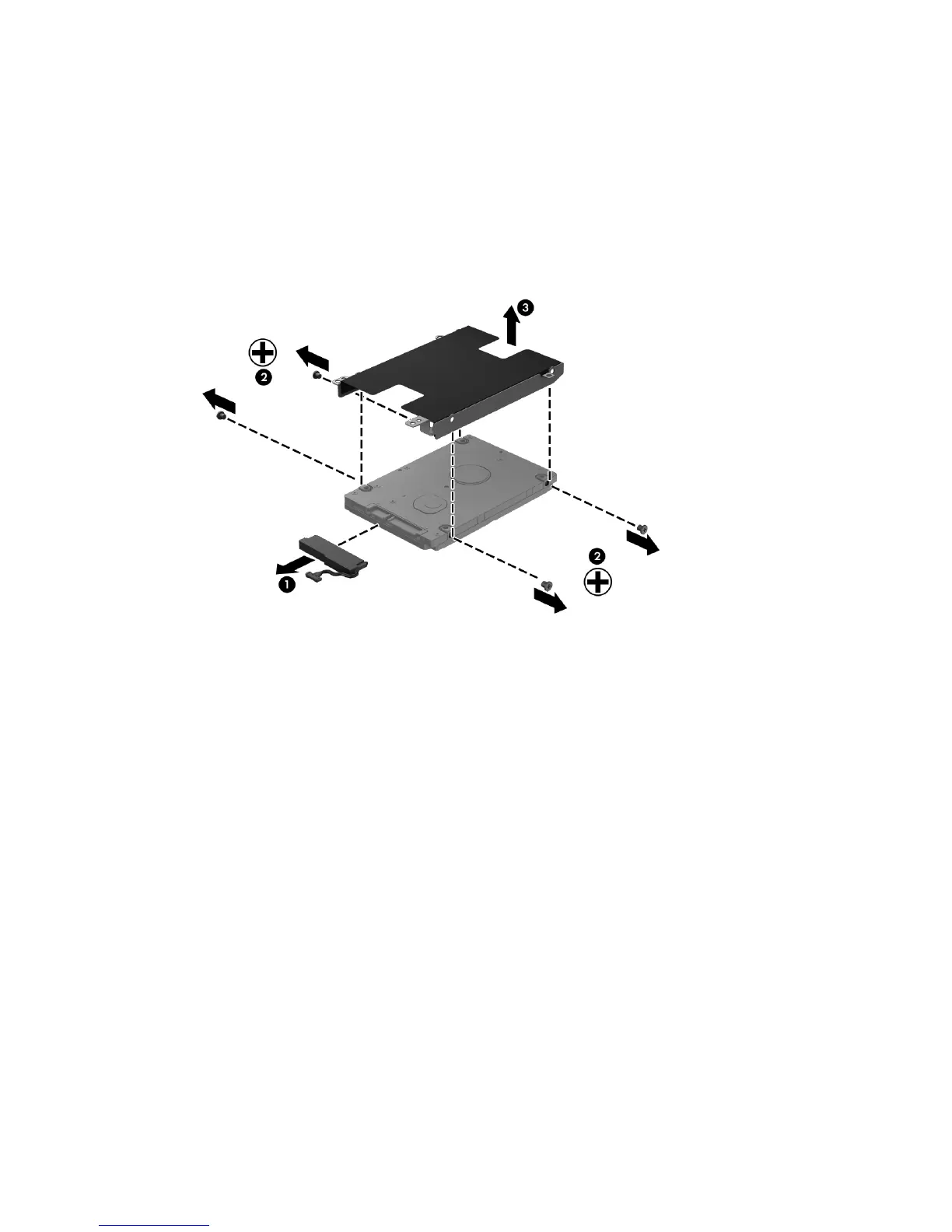

7. If it is necessary to disassemble the hard drive, perform the following steps:

a. Disconnect the hard drive connector cable (1) from the hard drive.

b. Remove the four Phillips PM3.0×3.0 screws (2) that secure the hard drive bracket to the

hard drive.

c. Remove the hard drive bracket (3) from the hard drive. The hard drive bracket, hard drive

connector cable, and screws are available in the Hard Drive Hardware Kit, spare part

number 686907-001.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures
