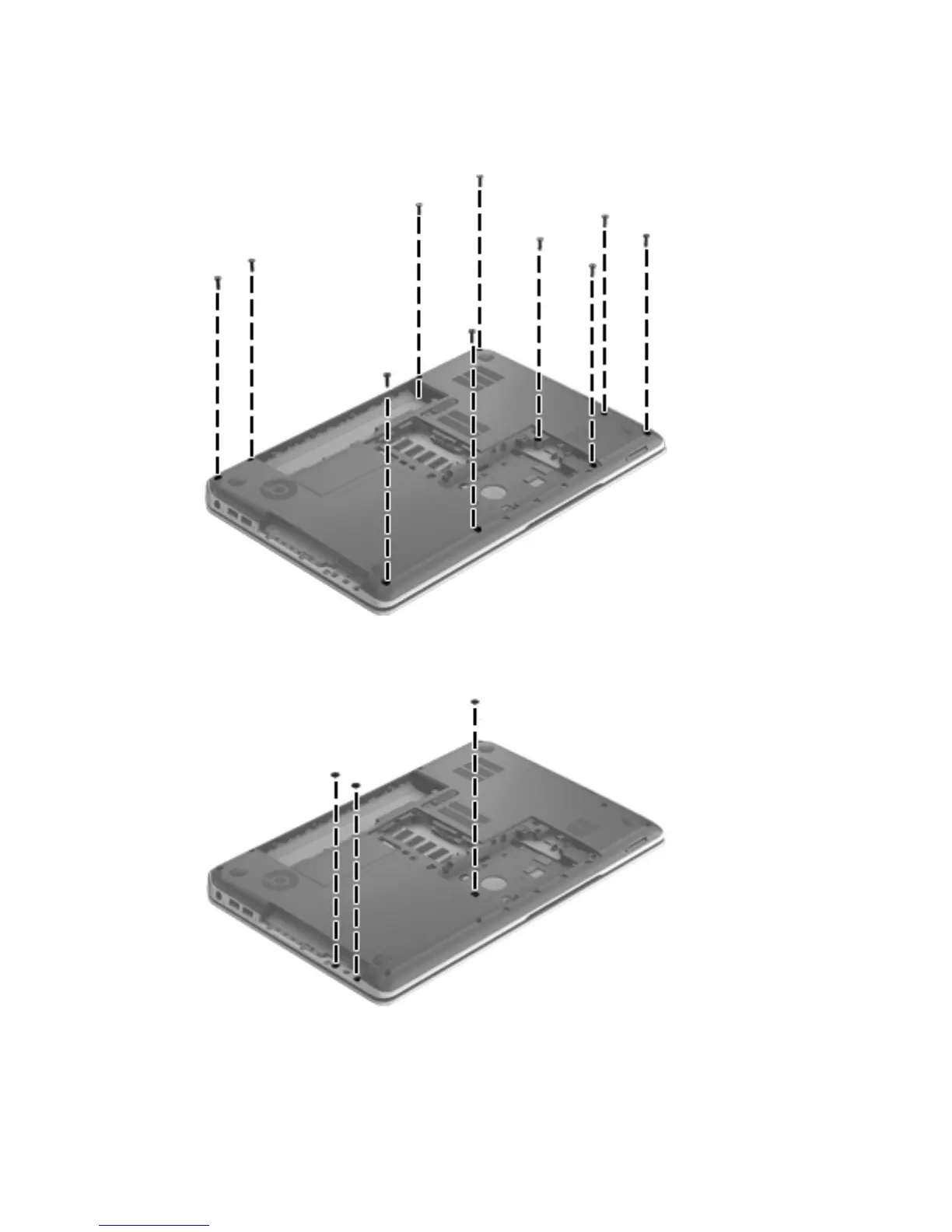

Remove the top cover:

1. Remove the ten Phillips PM2.5×10.0 screws that secure the top cover to the computer.

Remove the three Phillips PM2.0×2.0 broad head screws that secure the top cover to

the computer.

3. Turn the computer right side up, with the front toward you.

4. Open the computer.

Component replacement procedures

Questions and Answers:

Need help?

Do you have a question about the HP Pavilion m6 and is the answer not in the manual?

HP Pavilion m6 Specifications

General

Processor	Intel Core i7
RAM	Up to 8GB DDR3
Storage	Up to 1TB HDD or SSD options
Display	15.6-inch HD or Full HD
Graphics	Intel HD Graphics 4000, AMD Radeon HD 7670M
Operating System	Windows 8
Battery	6-cell Lithium-Ion battery
Wireless	802.11b/g/n, Bluetooth
Audio	Beats Audio
Webcam	HD webcam
Ports	USB 3.0, USB 2.0, HDMI, VGA, Ethernet, headphone/microphone combo jack, multi-format card reader
