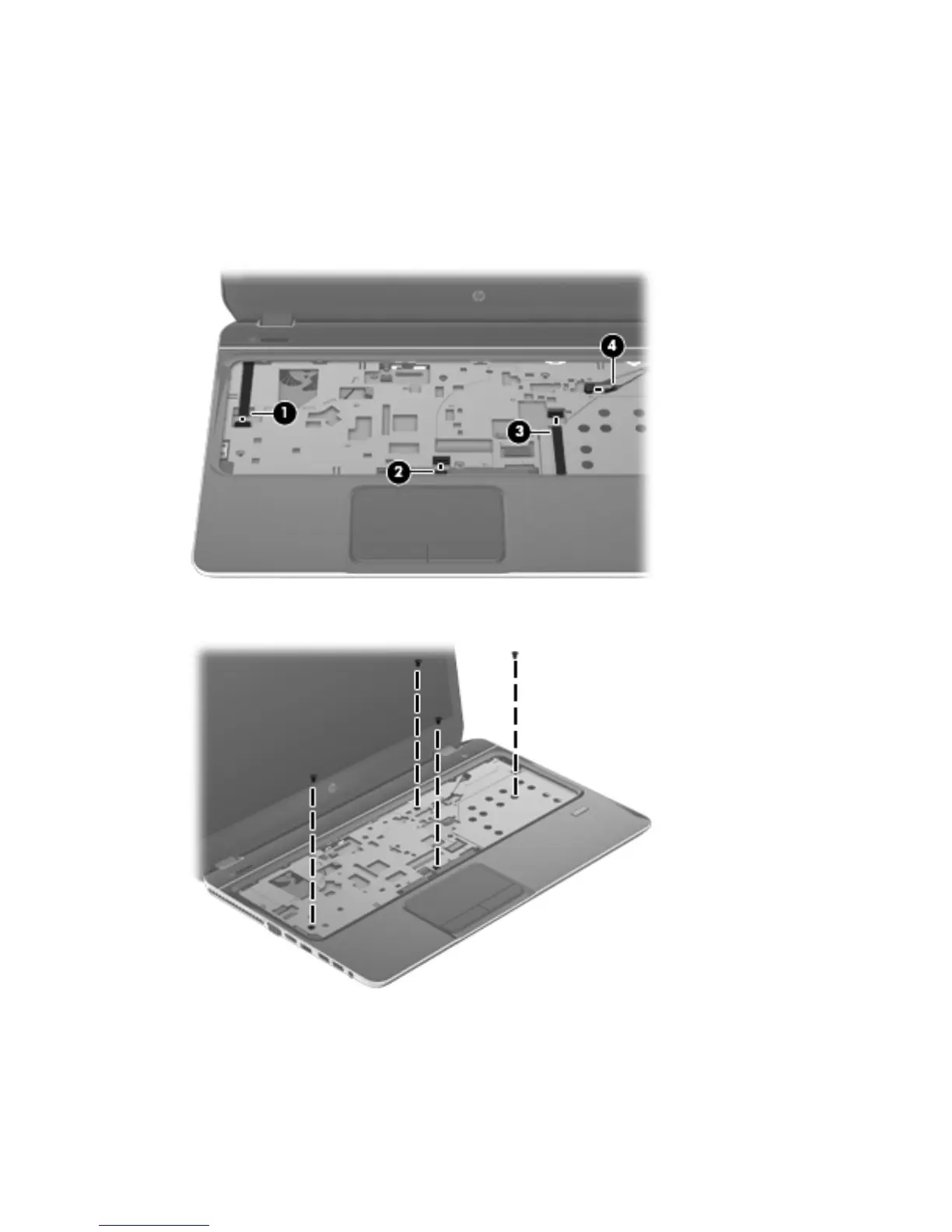

Disconnect the following cables from the system board:

(1) Power button board ZIF cable

(2) TouchPad button board ZIF cable

(3) Fingerprint reader board ZIF cable

(4) Right speaker cable

6. Remove the four Phillips PM2.5×5.0 screws that secure the top cover to the computer.

68 Chapter 4 Removal and replacement procedures

Questions and Answers:

Need help?

Do you have a question about the HP Pavilion m6 and is the answer not in the manual?

HP Pavilion m6 Specifications

General

Processor	Intel Core i7
RAM	Up to 8GB DDR3
Storage	Up to 1TB HDD or SSD options
Display	15.6-inch HD or Full HD
Graphics	Intel HD Graphics 4000, AMD Radeon HD 7670M
Operating System	Windows 8
Battery	6-cell Lithium-Ion battery
Wireless	802.11b/g/n, Bluetooth
Audio	Beats Audio
Webcam	HD webcam
Ports	USB 3.0, USB 2.0, HDMI, VGA, Ethernet, headphone/microphone combo jack, multi-format card reader
