b. Detach and release the WLAN module (the WLAN module is attached to the display
enclosure with double-sided tape), and remove the cables (2).

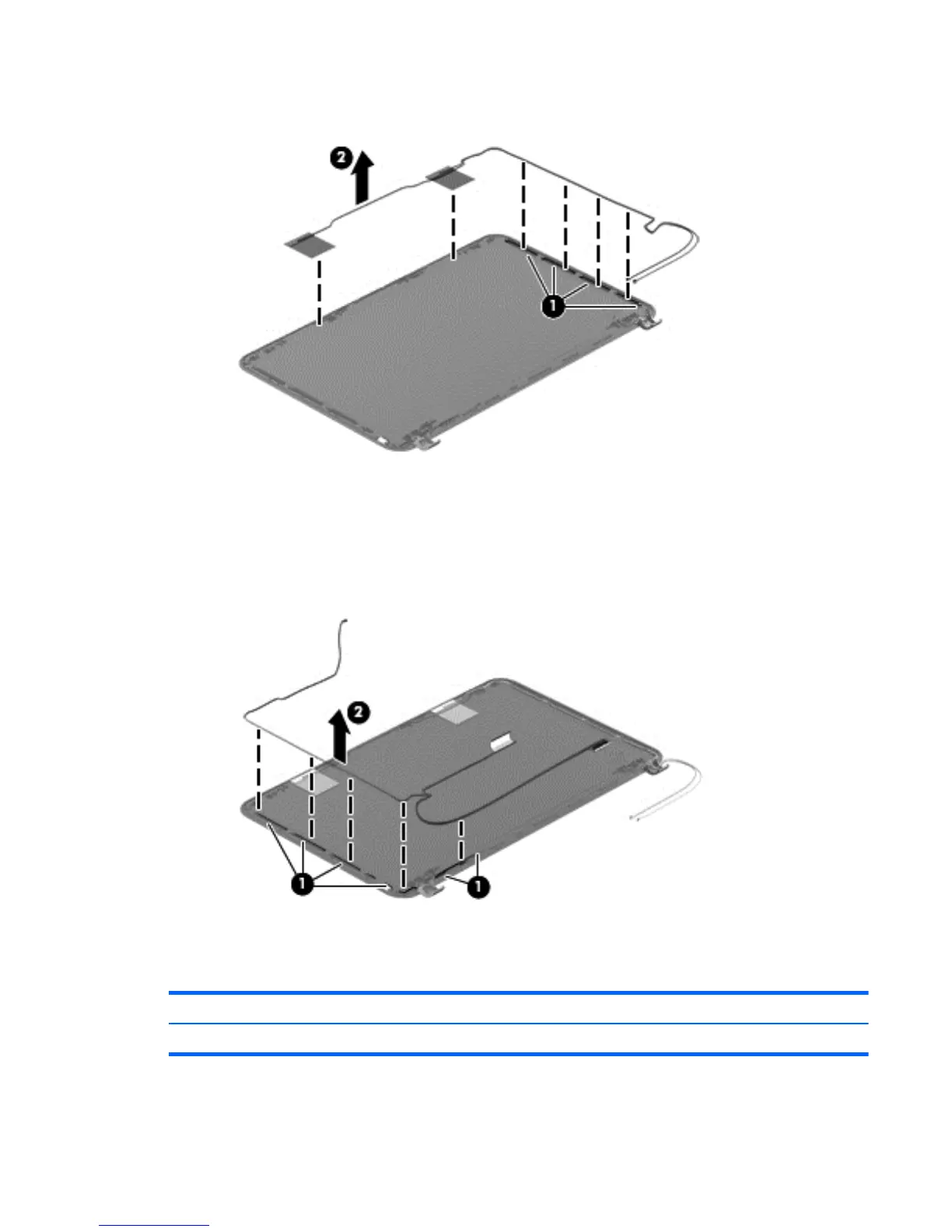

5. If it is necessary to replace the wireless antenna cables and transceivers:
a. Release the wireless antenna cables from the clips (1) built into the display enclosure.
b. Release the wireless antenna transceivers (2) from the display enclosure. (The wireless
antenna transceivers are attached to the display enclosure with double-sided tape.)
c. Remove the wireless antenna cables and transceivers.
Reverse this procedure to reassemble and install the display assembly.
Power connector
Description Spare part number
Power connector 697921-001
Component replacement procedures 71
