HP Pavilion TouchSmart 15

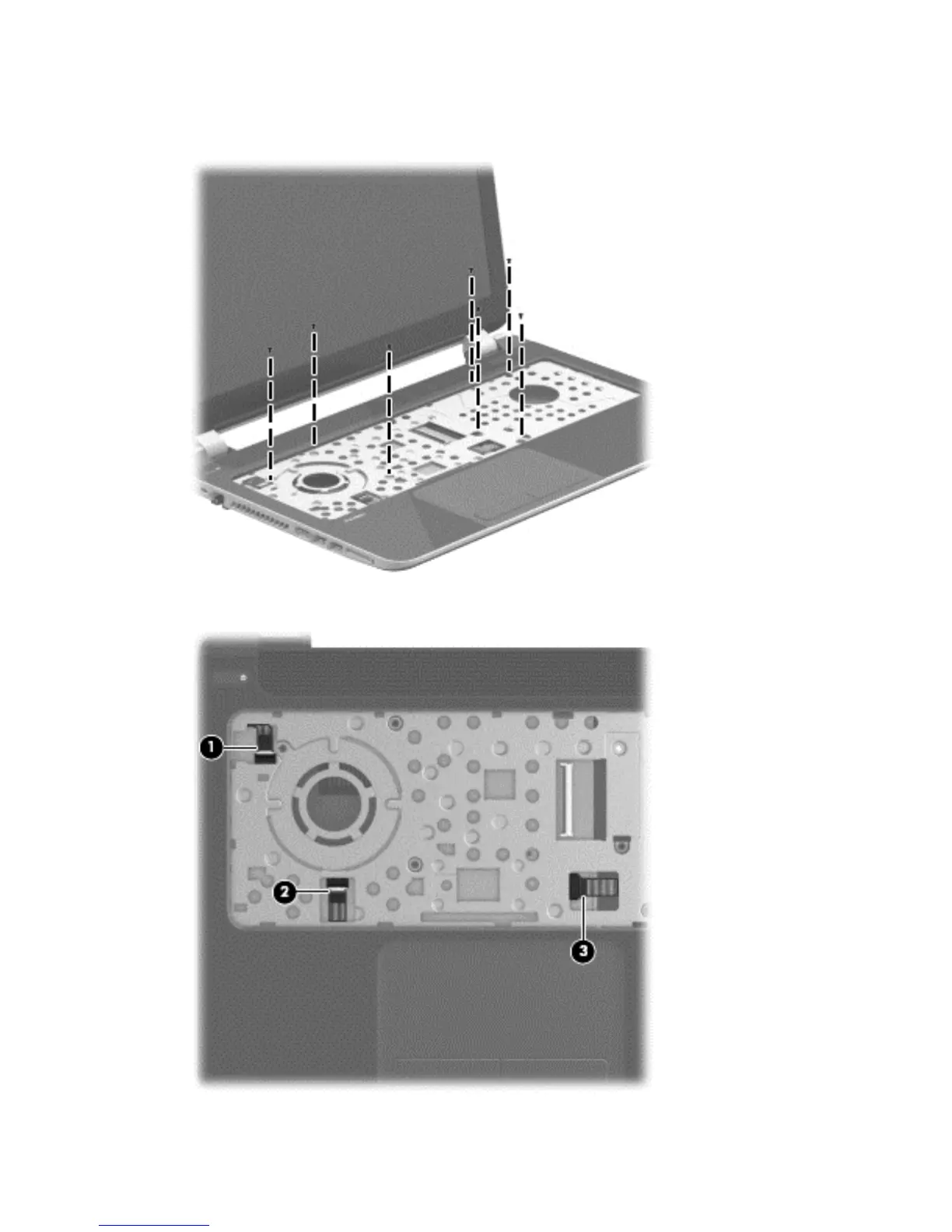

Remove the top cover:
1. Remove the seven Phillips M2.5×3.0 screws that secure the top cover to the base enclosure.
2. Disconnect the power button cable (1), the TouchPad cable (2), and the optical drive cable (3).
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
