HP Pavilion zv5000 - Notebook PC User Manual

External Device Connections
Hardware Guide 6–5
Linking to an infrared device
Setting Up an Infrared Transmission
For information about using infrared software, refer to the
operating system Help files.
To set up infrared devices for optimal transmission:
■ Prepare the infrared ports on both devices for transmission.
✎
The notebook infrared port is fully enabled when the
notebook is turned on.

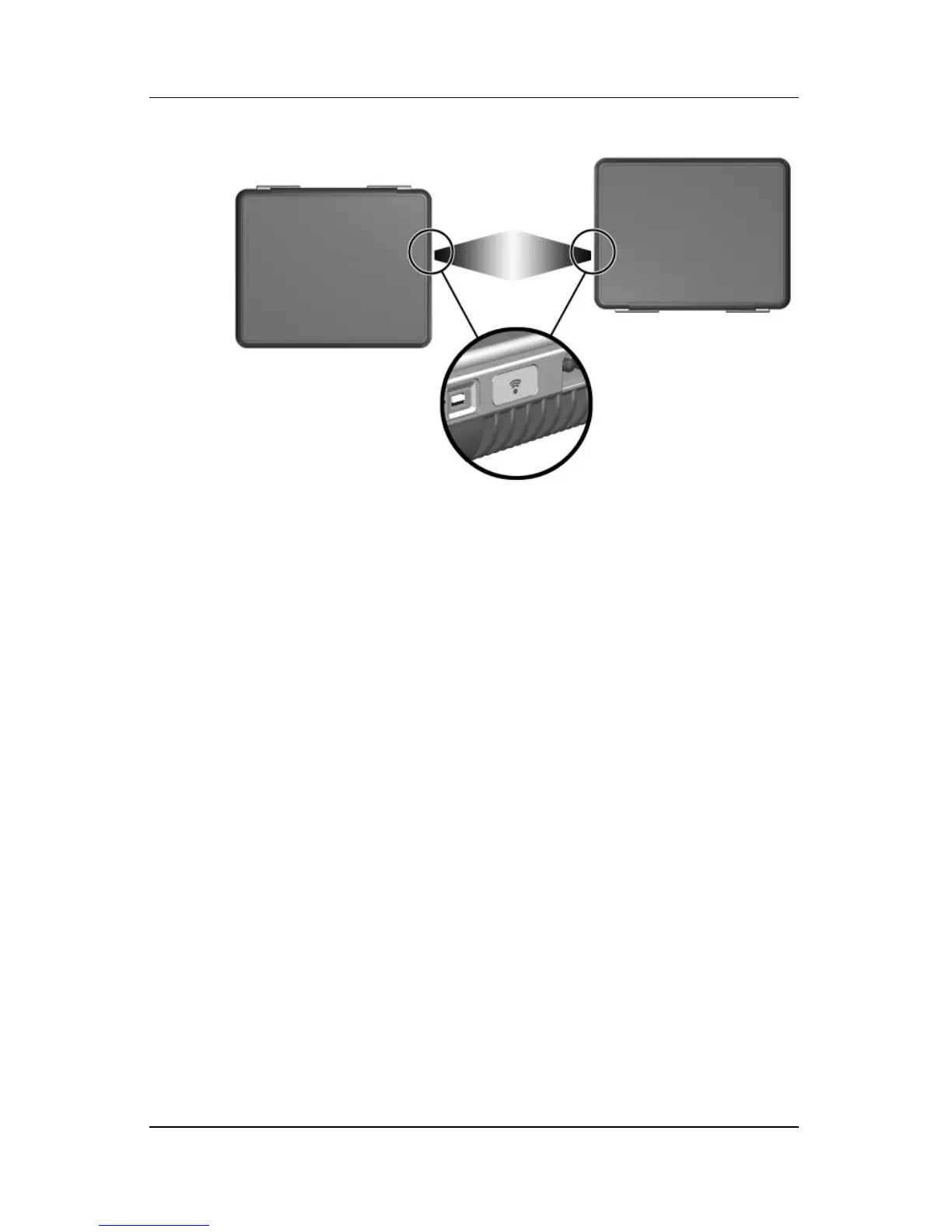

■ Position the devices so that their infrared ports face each
other at a distance of no more than one meter (3.3 feet).
■ Position the ports so that they face each other directly. The
maximum capture angle is 30 degrees, so the ports must be
aligned no more than 15 degrees off center.

HP Pavilion zv5000 - Notebook PC Specifications

General

Processor	Intel Pentium 4 or AMD Athlon XP
Storage	40GB to 80GB HDD
Operating System	Windows XP Home or Professional
Wireless	802.11b/g WLAN
RAM	Up to 2GB DDR SDRAM
Optical Drive	DVD/CD-RW Combo or DVD+/-RW
Weight	6.8 lbs (3.1 kg)
Ports	3x USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone, IEEE 1394, PCMCIA
Networking	10/100 Ethernet, 56k Modem
Battery	6-cell Lithium-Ion
Display	15.4-inch WXGA (1280x800)
