HP Pavilion zv5000 - Notebook PC User Manual

Hardware Upgrades
Hardware Guide 8–19
8. Align the tabs on the memory compartment cover with
the cover slots on the notebook.
9. Tilt the cover down until it is seated 1.
10. Reinsert and tighten the screw that secures the cover to the
notebook 2.
11. Replace the battery pack, reconnect AC power, and then
restart the notebook.

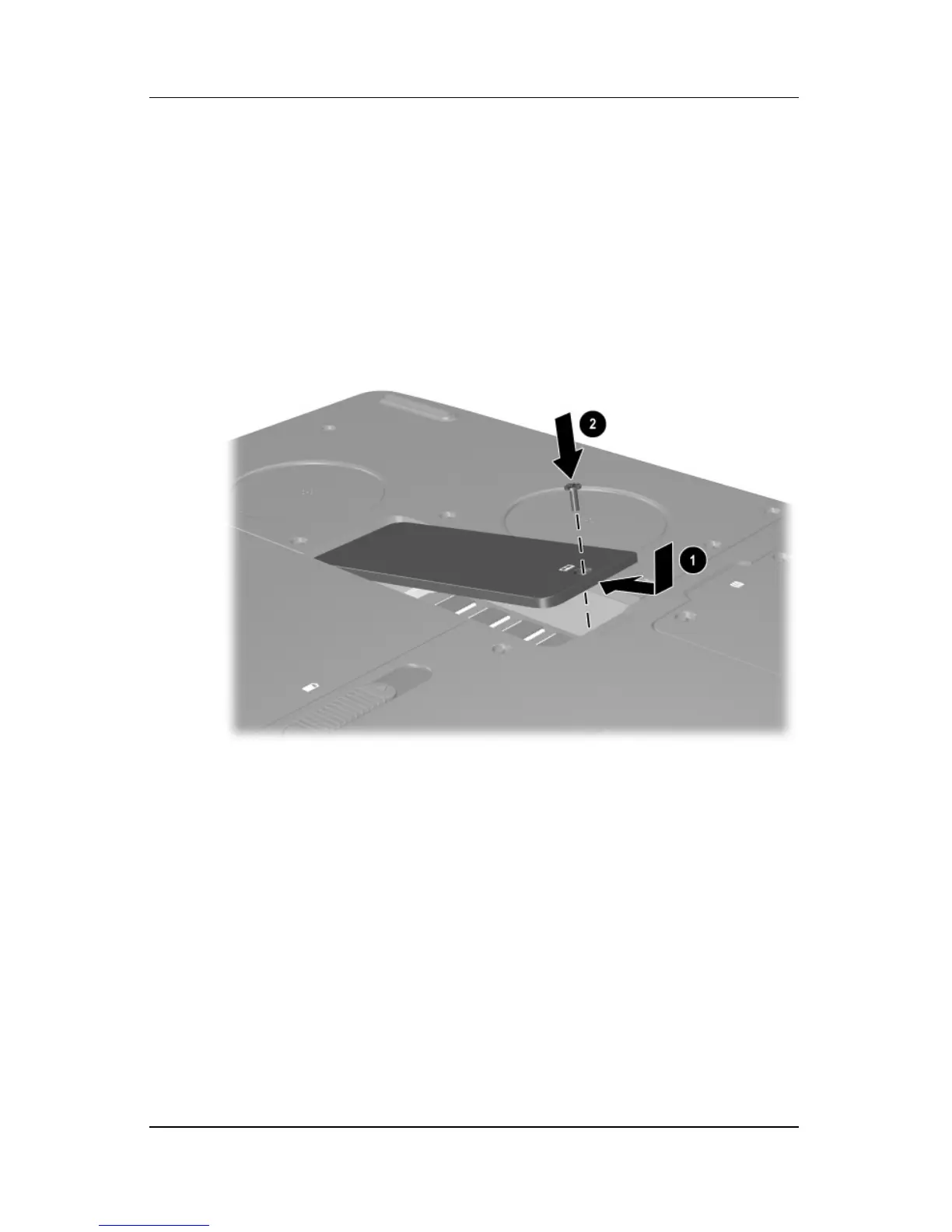

Closing the memory compartment

HP Pavilion zv5000 - Notebook PC Specifications

General

Processor	Intel Pentium 4 or AMD Athlon XP
Storage	40GB to 80GB HDD
Operating System	Windows XP Home or Professional
Wireless	802.11b/g WLAN
RAM	Up to 2GB DDR SDRAM
Optical Drive	DVD/CD-RW Combo or DVD+/-RW
Weight	6.8 lbs (3.1 kg)
Ports	3x USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone, IEEE 1394, PCMCIA
Networking	10/100 Ethernet, 56k Modem
Battery	6-cell Lithium-Ion
Display	15.4-inch WXGA (1280x800)
