HP Pavilion zv5000 - Notebook PC User Manual

Hardware Upgrades
Hardware Guide 8–23
7. Remove the hard drive assembly from the bay.
8. Remove the 4 hard drive bracket screws 1.
9. Remove the hard drive from the bracket 2.

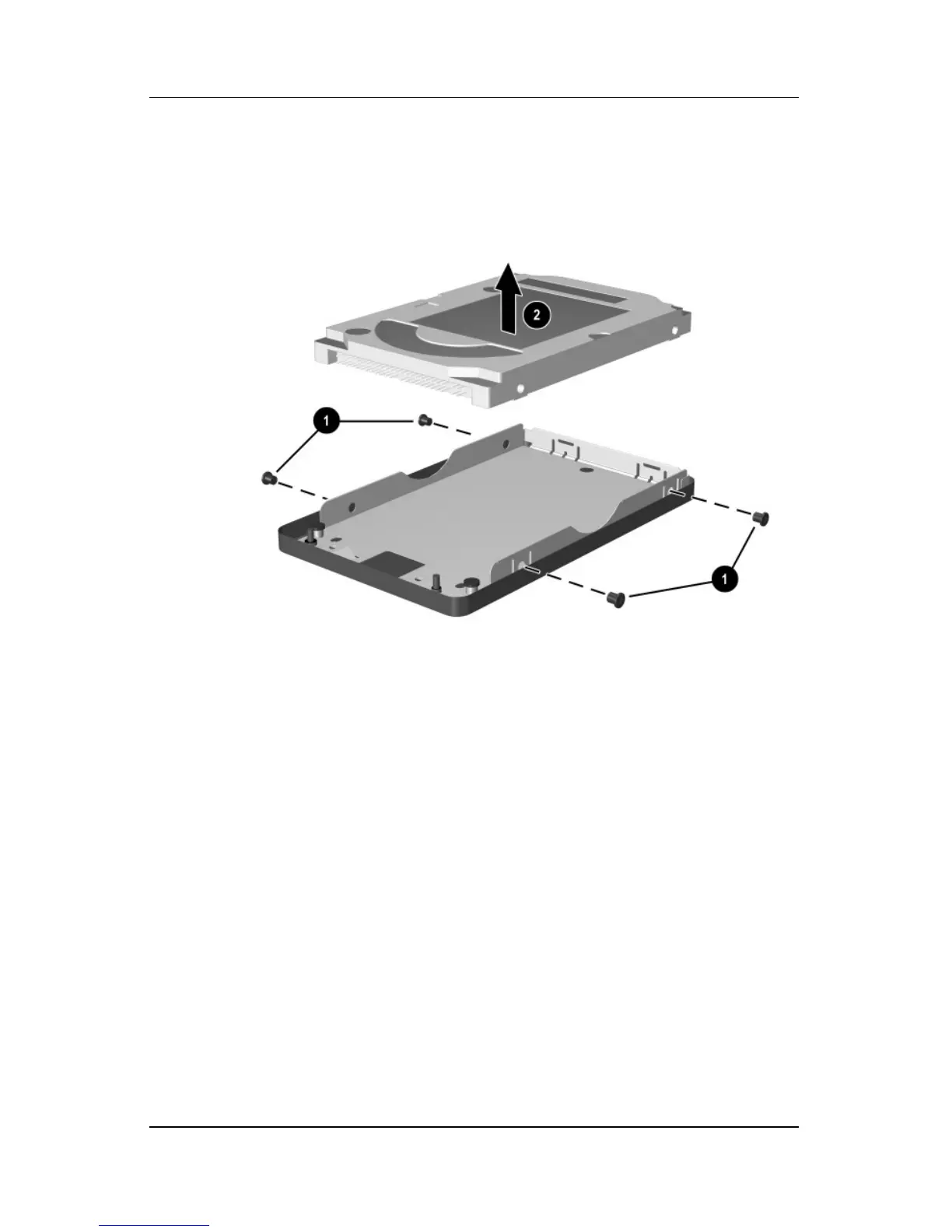

Removing the hard drive from the hard drive bracket

HP Pavilion zv5000 - Notebook PC Specifications

General

Processor	Intel Pentium 4 or AMD Athlon XP
Storage	40GB to 80GB HDD
Operating System	Windows XP Home or Professional
Wireless	802.11b/g WLAN
RAM	Up to 2GB DDR SDRAM
Optical Drive	DVD/CD-RW Combo or DVD+/-RW
Weight	6.8 lbs (3.1 kg)
Ports	3x USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone, IEEE 1394, PCMCIA
Networking	10/100 Ethernet, 56k Modem
Battery	6-cell Lithium-Ion
Display	15.4-inch WXGA (1280x800)
