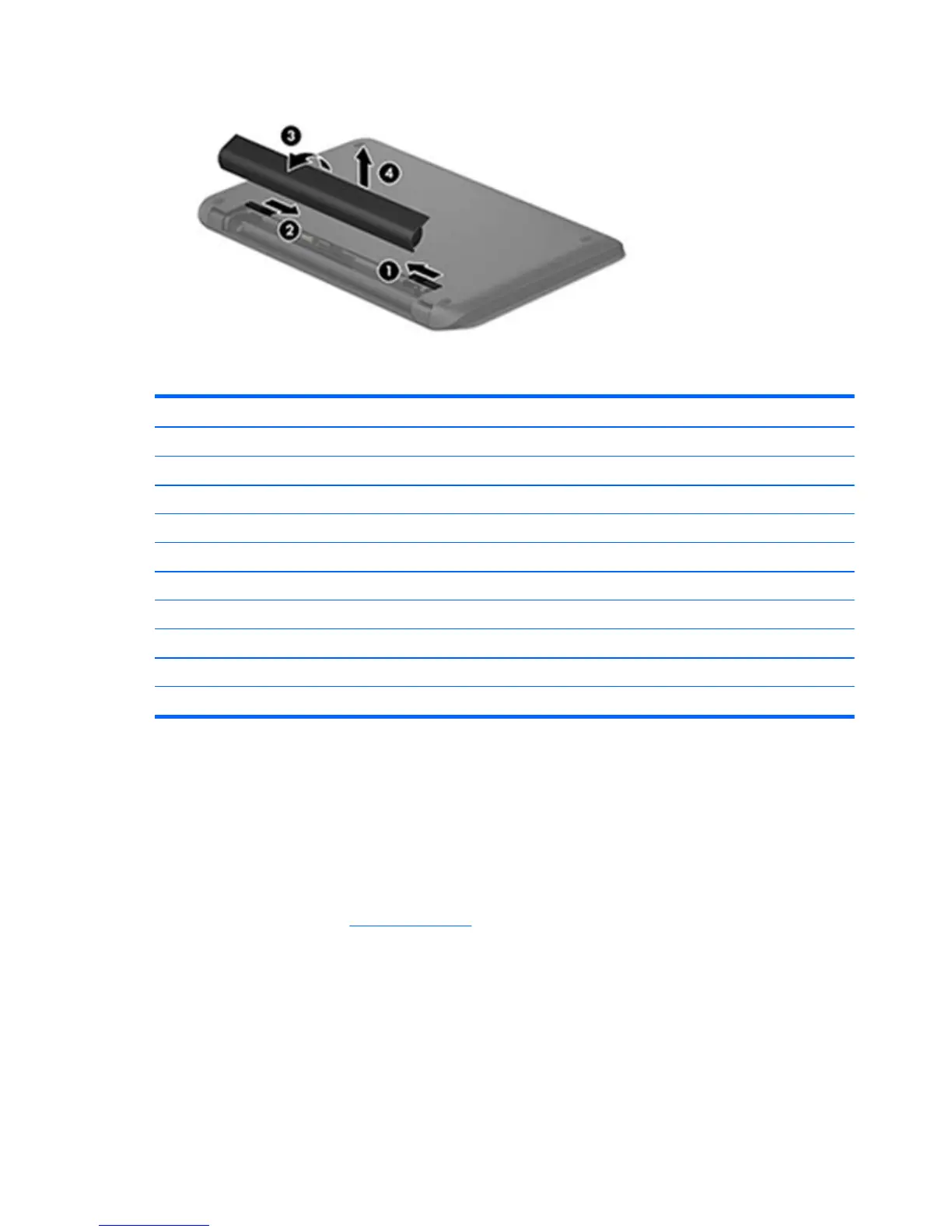

3. Rotate the battery upward (3), and then remove the battery from the computer (4).
Optical drive
Description Spare part number
DVD+/-RW Double-Layer SuperMulti Drive
For use in silver models 809328-001
For use in white models 809329-001
For use in red models 809330-001
For use in blue models 809331-001
For use in pink models 809332-001
For use in purple models 809333-001
For use in black models 812889-001
Blu-ray Disc R/RW with SuperMulti Drive
For use in silver models 809334-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 29).
To remove the optical drive:
1. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
