Display assembly, touch
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 29).
5. Remove the optical drive (see
Optical drive on page 30).
6. Remove the bottom cover (see
Bottom cover on page 34).
7. Remove the system board (see
System board on page 48).

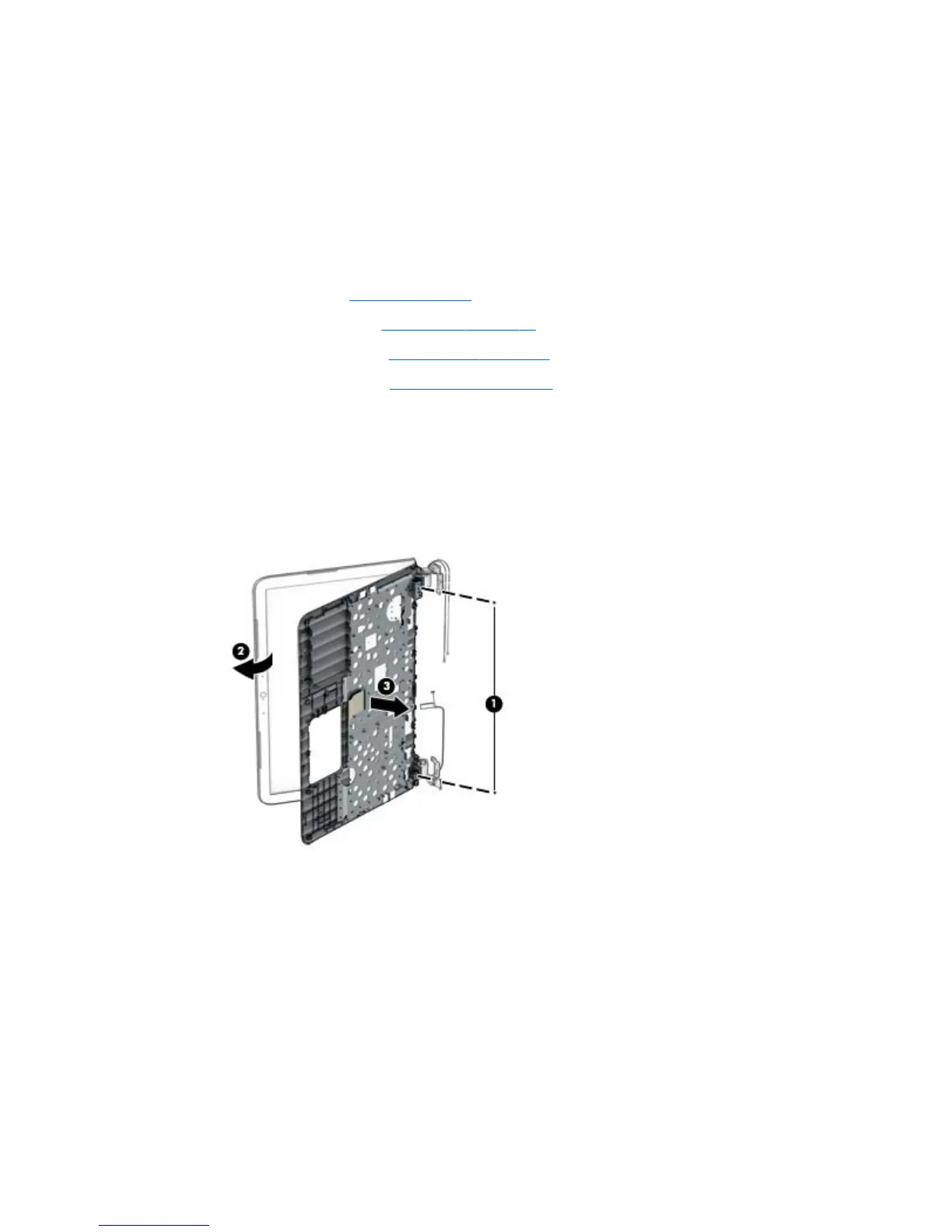

To remove the display assembly:
1. Position the computer on its side, partially open.
2. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display assembly to the computer.
3. Open the display to rotate the hinges upward to an angle (2).
4. Separate the display assembly from the computer (3).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display cover:
a. Pry up on each side of the display to disengage the cover (1).
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
