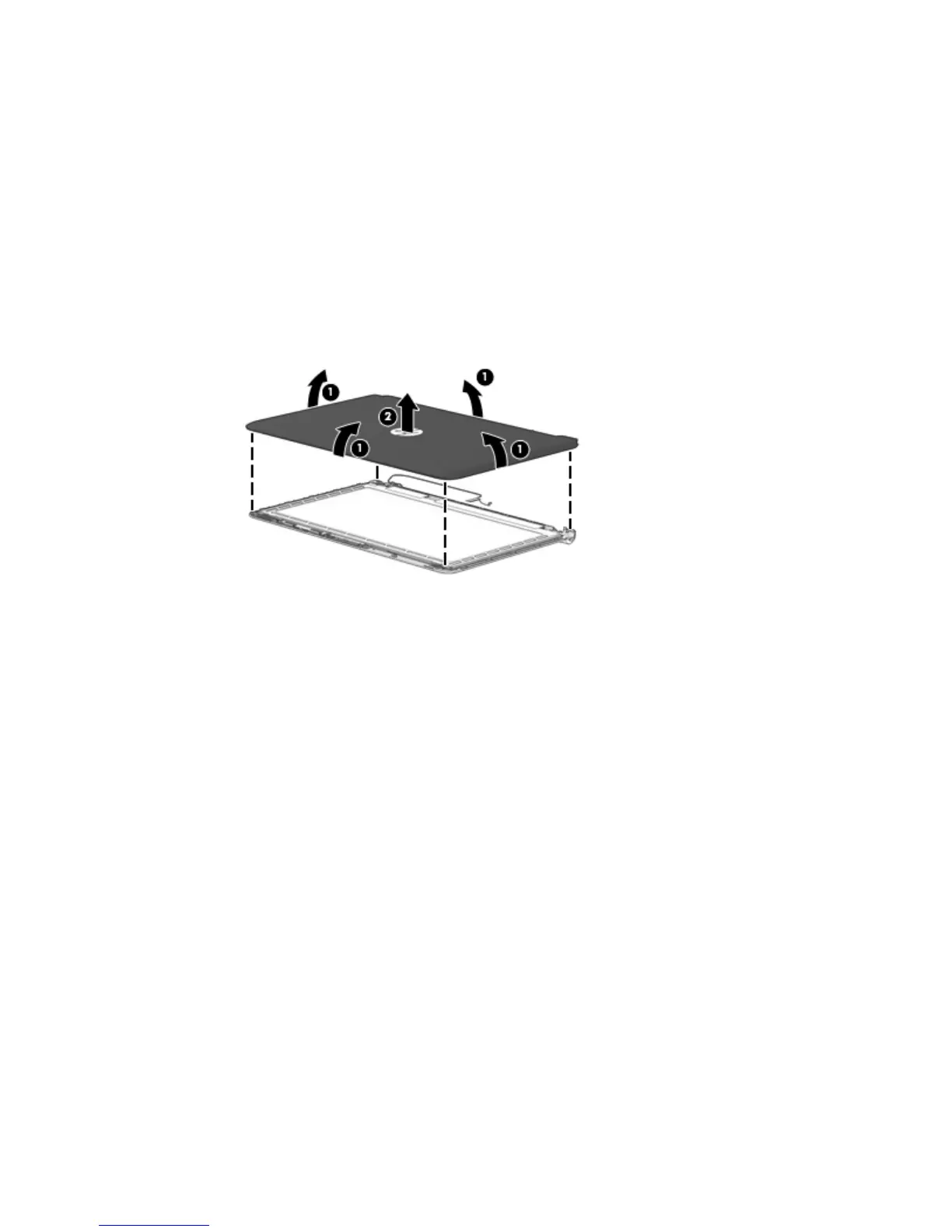

b. Remove the display cover (2).
The display back cover is available using the following spare part numbers:
809015-001: Silver models
809016-001: White models
809017-001: Red models
809018-001: Blue models
809019-001: Pink models
809020-001: Purple models
809344-001_ Black models
2. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Use a tool to pry the webcam and disengage the adhesive that secures it to the display (1).
c. Disconnect the cable (2) from the module.
Component replacement procedures 63
