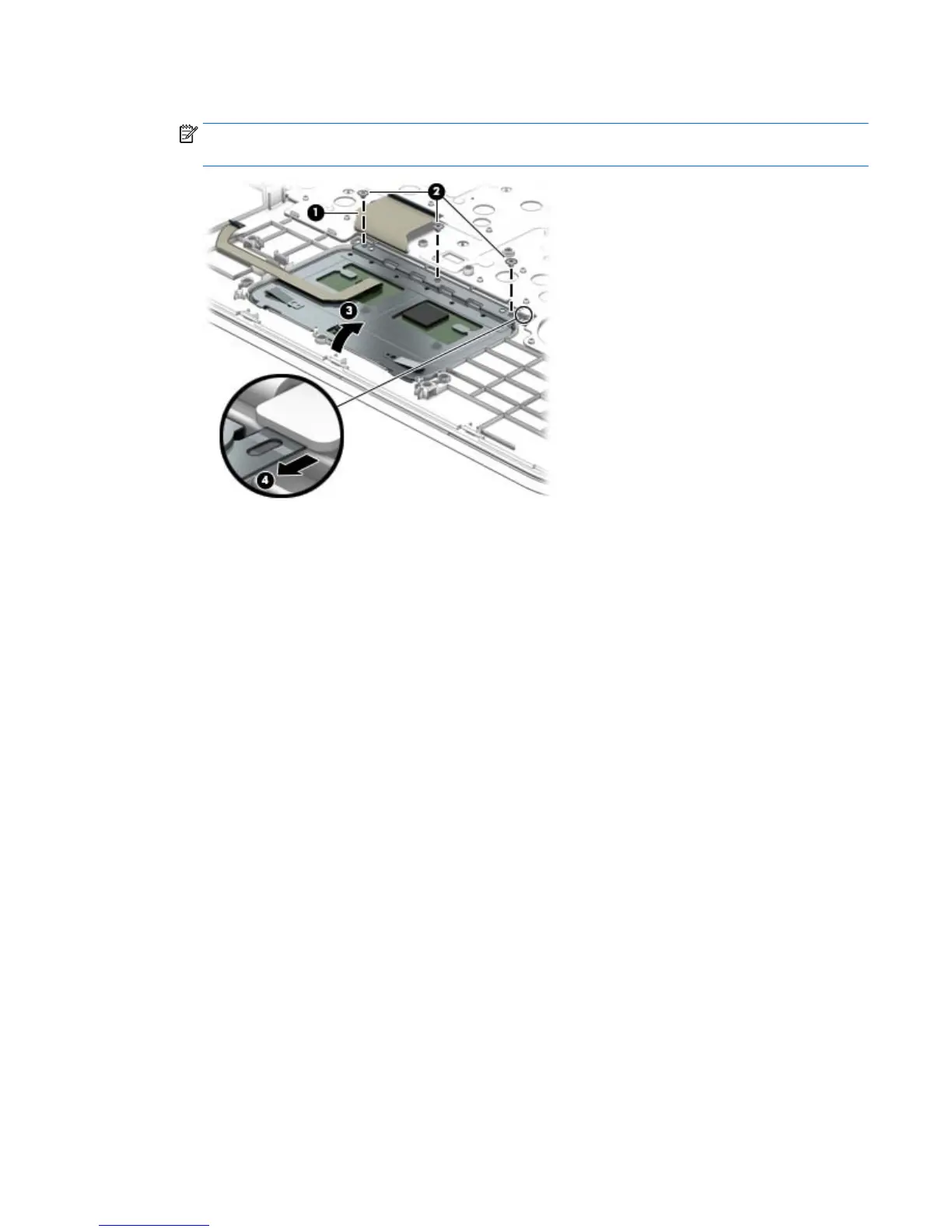

5.
Lift the bottom of touchpad up, and then pull it aw
ay from computer.
(3)
.
NOTE:
When installing the TouchPad, no
te that the metal protrusion
that extents
from the touchpad
is installed UNDER the keyb
oard shield
(4)
.
Reverse this procedure to install the touchpad.
Component replacement procedures
55
62
64
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Display
13
Right Side
16
Left Side
17
Top
18
Touchpad
18
Lights
19
Buttons and Speakers
20
Bottom
21
Labels
22
3 Illustrated Parts Catalog
23
Computer Major Components
23
Display Assembly Subcomponents, Non-Touch Models
27
Display Assembly Subcomponents, Touch Models
29
Miscellaneous Parts
30
Mass Storage Devices
31
4 Removal and Replacement Procedures Preliminary Requirements
33
Tools Required
33
Service Considerations
33
Plastic Parts
33
Cables and Connectors
33
Drive Handling
34
Grounding Guidelines
34
Electrostatic Discharge Damage
34
Packaging and Transporting Guidelines
35
Workstation Guidelines
35
5 Removal and Replacement Procedures for Customer Self-Repair Parts
37
Component Replacement Procedures
37
Battery
37
Optical Drive
38
6 Removal and Replacement Procedures for Authorized Service Provider Parts
41
Component Replacement Procedures
41
Bottom Cover
42
Hard Drive
45
WLAN Module
46
RTC Battery
48
Memory Module
49
Fan
50
Heat Sink Assembly
51
USB Board
54
Optical Drive Connector
55
System Board
56
Speakers
59
Power Button Board
60
Power Connector Cable
61
Touchpad
62
Display Assembly, Non-Touch
64
Display Assembly, Touch
70
7 Using HP PC Hardware Diagnostics (UEFI)
75
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
75
8 Using Setup Utility (BIOS) in Windows 8.1
77
Starting Setup Utility (BIOS)
77
Updating the BIOS
77
Determining the BIOS Version
77
Downloading a BIOS Update
78
Synchronizing a Tablet and Keyboard (Select Models Only)
79
9 Using Setup Utility (BIOS) in Windows 7
81
Starting Setup Utility (BIOS)
81
Updating the BIOS
81
Determining the BIOS Version
81
Downloading a BIOS Update
81
10 Backing Up, Restoring, and Recovering in Windows 8.1
83
Creating Recovery Media and Backups
83
Creating HP Recovery Media (Select Models Only)
83
Using Windows Tools
84
Restore and Recovery
84
Recovering Using HP Recovery Manager
85
What You Need to Know before You Get Started
85
Using HP Recovery Media to Recover
86
Using the HP Recovery Partition (Select Models Only)
86
Changing the Computer Boot Order
87
Removing the HP Recovery Partition (Select Models Only)
87
11 Backing Up, Restoring, and Recovering in Windows 7
89
Creating Backups
89
Creating Recovery Media to Recover the Original System
89
What You Need to Know
89
Creating the Recovery Media
90
Creating System Restore Points
90
Creating a System Restore Point
90
What You Need to Know
90
Backing up System and Personal Information
90
Creating a Backup Using Windows Backup and Restore
91
Tips for a Successful Backup
91
What You Need to Know
91
Restore and Recovery
92
Restoring to a Previous System Restore Point
92
Restoring Specific Files
92
Restoring Specific Files Using Windows Backup and Restore
92
Recovering the Original System Using HP Recovery Manager
92
What You Need to Know
92
Changing the Computer Boot Order
93
Recovering Using HP Recovery Partition (Select Models Only)
93
Recovering Using the Recovery Media
93
12 Specifications
95
Computer Specifications
95
39.6-CM (15.6-In) Display Specifications
96
Hard Drive Specifications
97
Blu-Ray ROM DVD±RW Supermulti DL Drive
98
DVD±RW Supermulti DL Drive Specifications
99
13 Power Cord Set Requirements
101
Requirements for All Countries
101
Requirements for Specific Countries and Regions
102
5
Based on 1 rating
Ask a question
Give review
