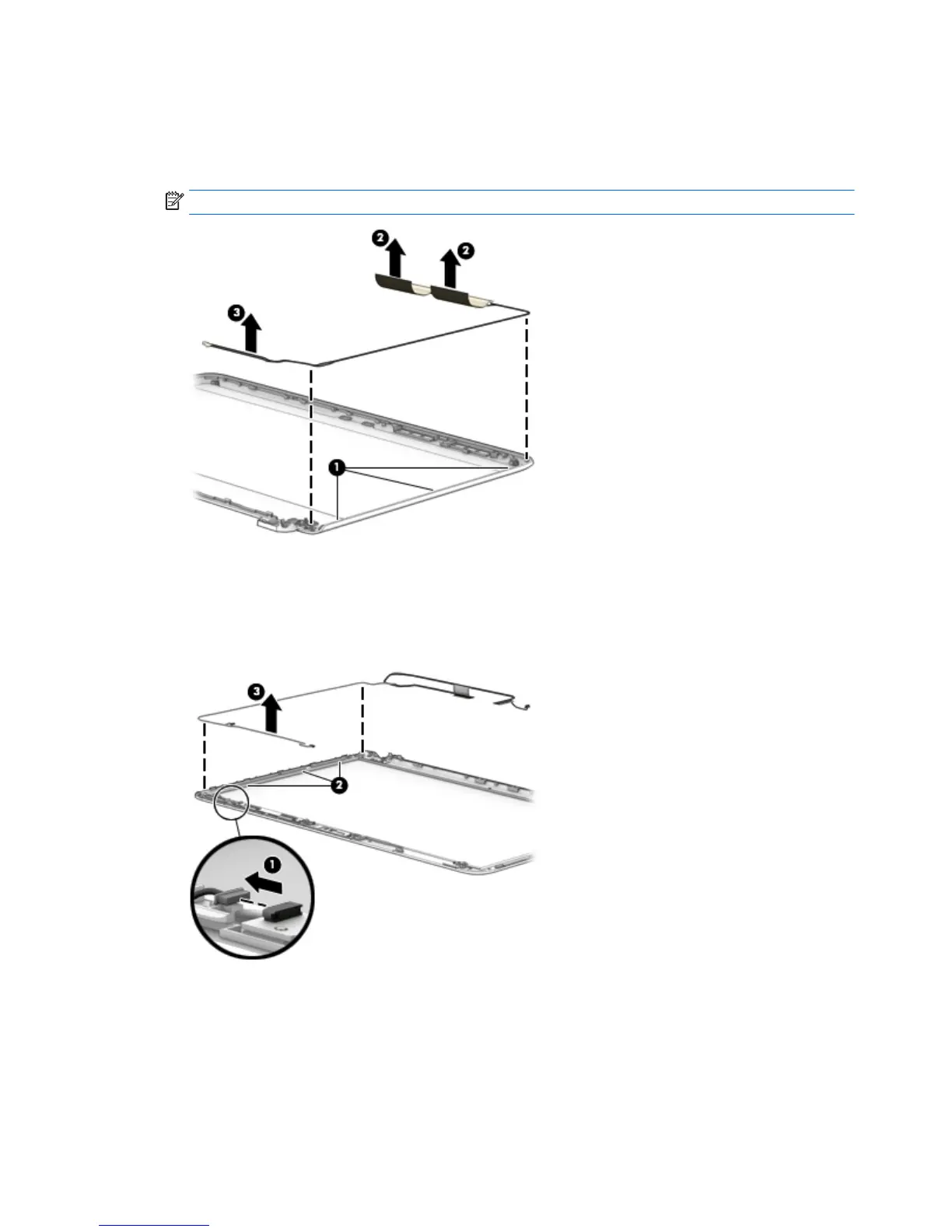

5. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips (1) built into the display enclosure, peel the transceivers from the enclosure (2), and then remove
the antenna cables and transceivers (3).
The antennas are available using spare part number 811201-001.
NOTE: Number of antennas and transceivers may vary.
6. Disconnect the cable from the touch control board (1).
7. To remove the display/webcam cable, remove the cable from the clips built into the display enclosure
(2), and then remove the cable from the display enclosure (3).
The display cable is available using spare part number 811222-001 for touch displays.
8. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to reassemble and install the display assembly.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
