HP Pro 2000 Illustrated Parts & Service Map

HP Pro 2000/2080 Illustrated Parts & Service Map, MT chassis 597663-001 page 2

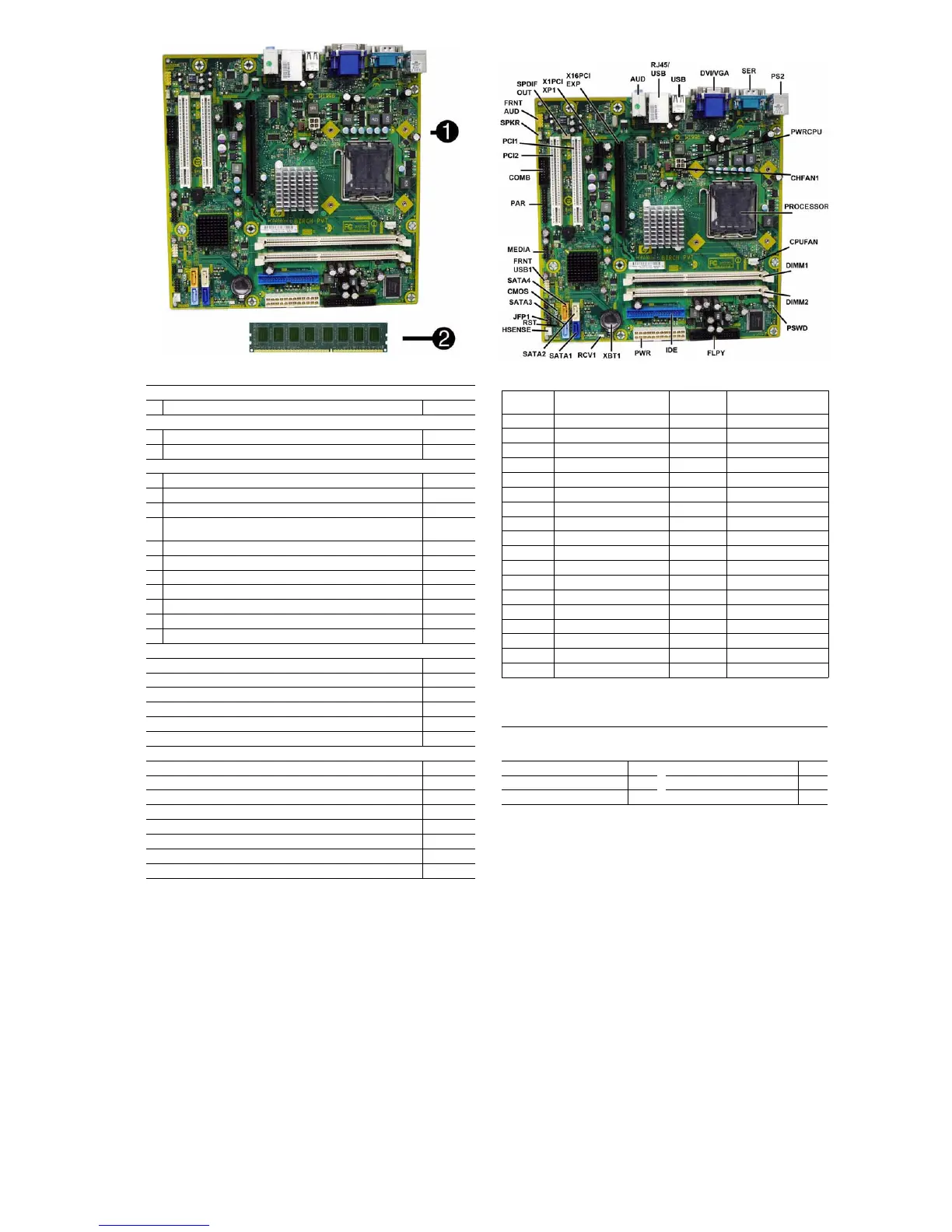

System Board
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 593137-001
Memory modules (PC3-10600, CL9)
21 GB
576109-001
*2 GB
576110-001
Other boards
* Agere International 56K LSI v92 modem, includes bracket 490689-001
* ATI Radeon HD4350 (RV710) PCIe x16 graphics card, 512 MB 586750-001
* ATI Radeon HD4550 (RV710) PCIe x16 graphics card, 256 MB 538051-001
* ATI Radeon HD4650 (RV730) PCIe x16 graphics card, 1 GB, 15 month
warranty, EMEA only
578174-001
* GeForce GT205 512-MB PCIe graphics card (for use in China only) 589145-001
* GeForce GT315 512-MB PCIe graphics card (for use in China only) 589146-001
* GeForce GT230 1.5-GB PCIe graphics card 586381-001
* GeForce GT210 512-MB PCIe graphics card 586382-001
* Intel Gigabit NIC, includes bracket 490367-001
* Serial/parallel port PCI adapter 321722-001
* HP FireWire IEEE 1394 PCI card, FH 585468-001
Intel Celeron Processors with alcohol pad and thermal grease:
E3300, 1-MB cache, 2.50 GHz 585886-001
E3200, 1-MB cache, 2.40 GHz 585885-001
E1600, 512-KB cache, 2.40 GHz 577416-001
E1500, 512-KB cache, 2.20 GHz 516899-001
450, 512-KB cache, 2.20 GHz 508256-001
440, 512-KB cache, 2.00 GHz 449166-001
Intel Core2 Duo Processors with alcohol pad and thermal grease:
E8600, 6-MB cache, 3.33 GHz 497732-001
E8500, 6-MB cache, 3.16 GHz 466170-001
E8400, 6-MB cache, 3.00 GHz 466169-001
E7600, 3-MB cache, 3.06 GHz 573954-001
E7500, 3-MB cache, 2.93 GHz 531988-001
E6300, 2-MB cache, 2.80 GHz 580748-001
E5400, 2-MB cache, 2.70 GHz 586743-001
E5300, 2-MB cache, 2.60 GHz 586747-001
* Not shown
System Board Connectors and Jumpers (component location may vary)
SPDIF OUT Digital line-in/line-out audio
connector
XBT1 Battery slot
X1PCEXP1 PCIe X1, slot 1 RCV1 Recovery header
X16PCIEXP PCIe X16 connector SATA1 Primary SATA hard drive
AUD Double stack audio connector SATA2 1st SATA optical drive
RJ45/USB Stacked RJ-45/USB connectors HSENSE Hood sensor connector
USB USB connector RST Reset header
DVI/VGA Stacked DVI/VGA connector JFP1 Power switch connector
SER Serial port SATA3 2nd SATA optical drive
PS2 PS/2 connectors CMOS CMOS header
PWRCPU CPU power connector SATA4 2nd SATA hard drive
CPUFAN CPU/heat sink fan connector FRNT_USB1 1st USB connector
PROCESSOR Processor slot MEDIA Media card reader connector
CHFAN1 System fan connector PAR Parallel port connector
DIMM1 Memory socket 1 COMB 2nd serial port connector
DIMM2 Memory socket 2 PCI2 PCI slot 2
PSWD Password header PCI1 PCI slot 1
FLPY Floppy drive connector SPKR Speaker connector
IDE IDE connector FRNT_AUD Front panel connector
PWR Main power connector
Keyboards (not illustrated)
PS/2, Basic
USB, Standard
USB SmartCard
537745-xxx
537746-xxx
537747-xxx
Hong Kong* -AC1 Korean -KD1
International English -L31 S. Chinese -AA1
Japanese -291 Taiwanese -AB1
*only for 537745-xxx
