2 External component identication
Identifying components

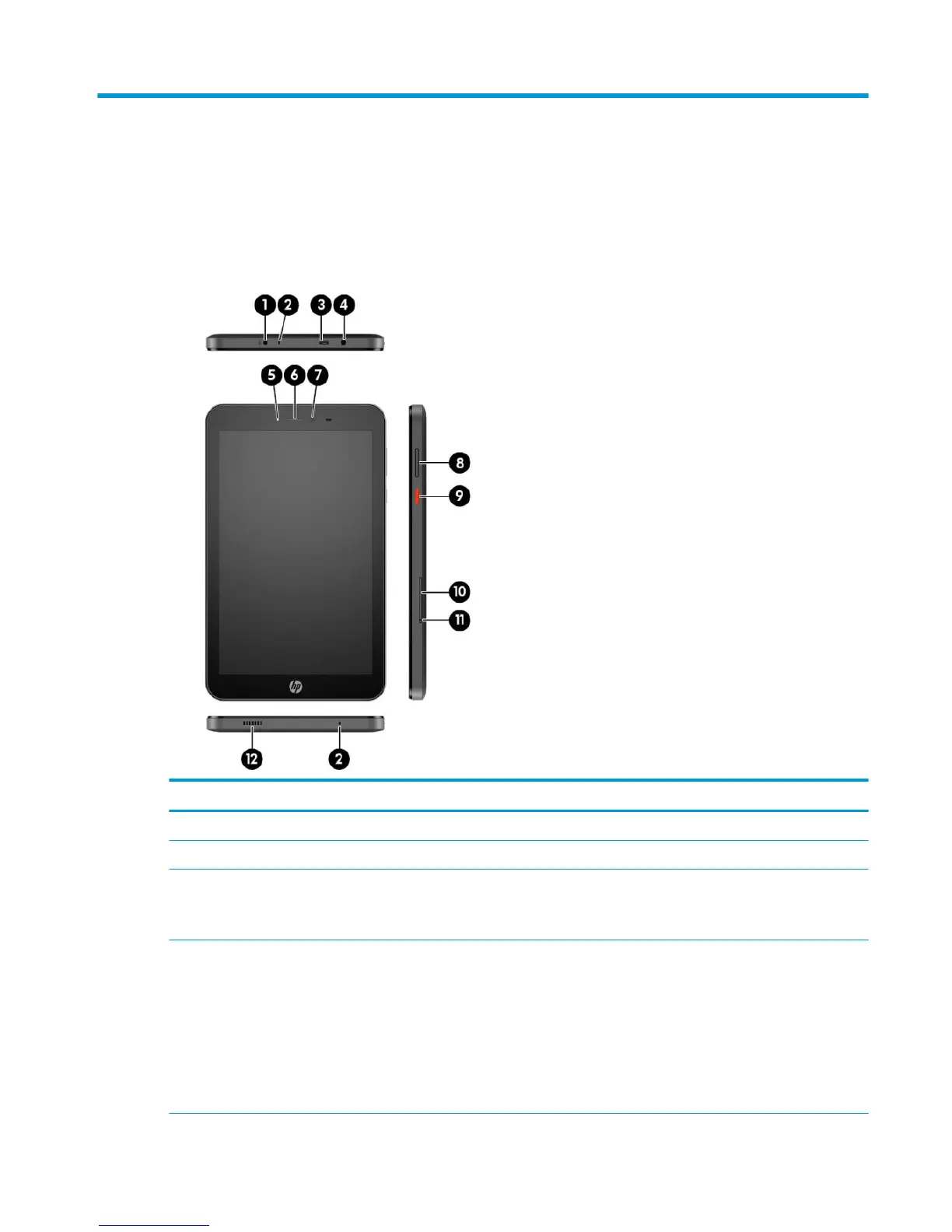

Front
Component Description
(1) Power connector Connects an AC adapter.
(2) Microphones Receive sound.
(3) Micro-B USB port Provides data transfer.
NOTE: A micro-B USB extension cable is included with your
voice tablet for connecting to USB devices.
(4) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional standalone microphones.
WARNING! To reduce the risk of personal injury, lower the
volume setting before putting on headphones, earbuds, or a
headset.
NOTE: When a device is connected to the jack, the speakers are
disabled.
Identifying components 3
