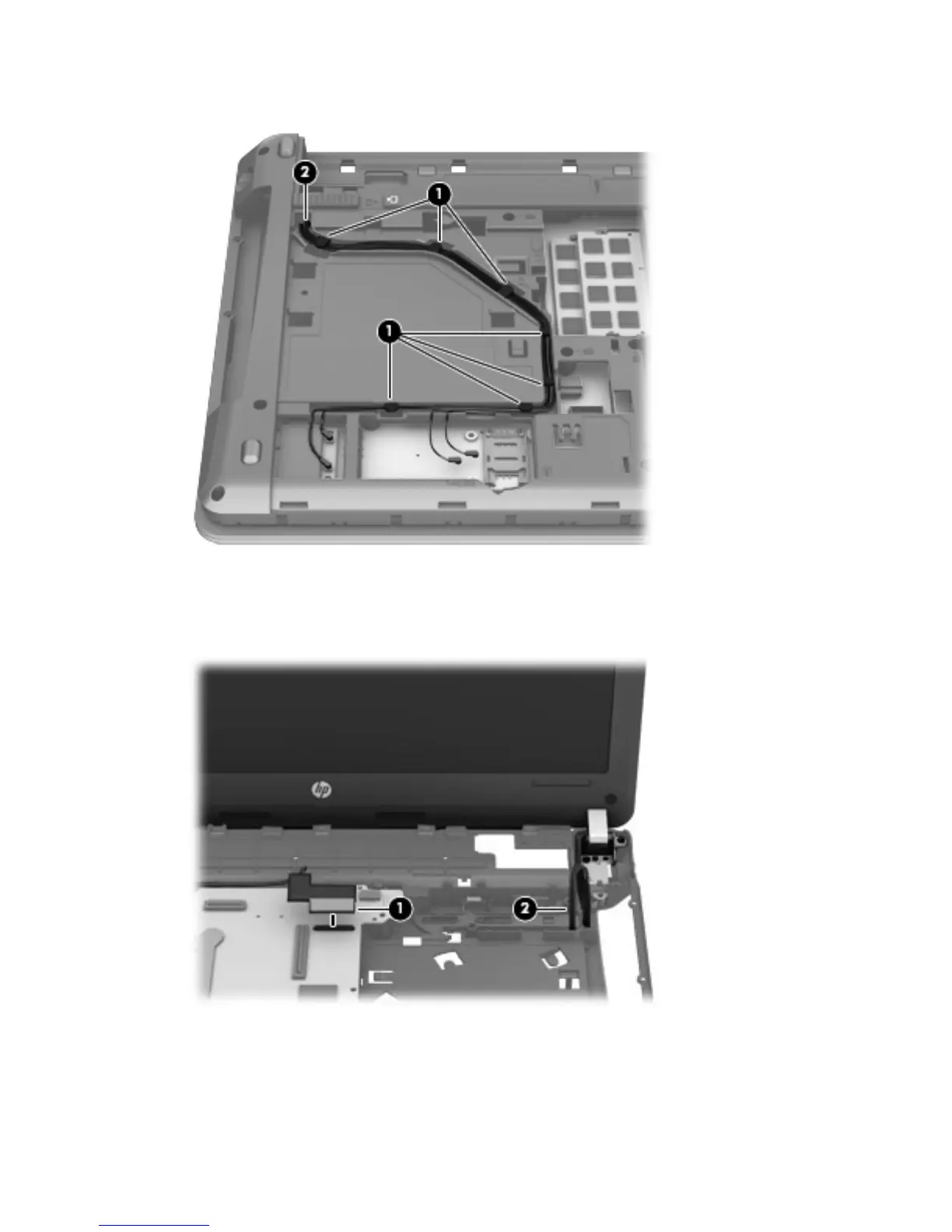

3. Pull the antennas through the hole that leads to the top of the computer (2).
4. Open the computer as far as possible.
5. Disconnect the display cable (1) from the system board and make sure the antenna cables are
all pulled through the hole (2) that routes to the bottom of the computer.
6. Remove the three Torx T8M2.5×6.0 screws (1) that secure the display to the computer.
80 Chapter 4 Removal and replacement procedures
