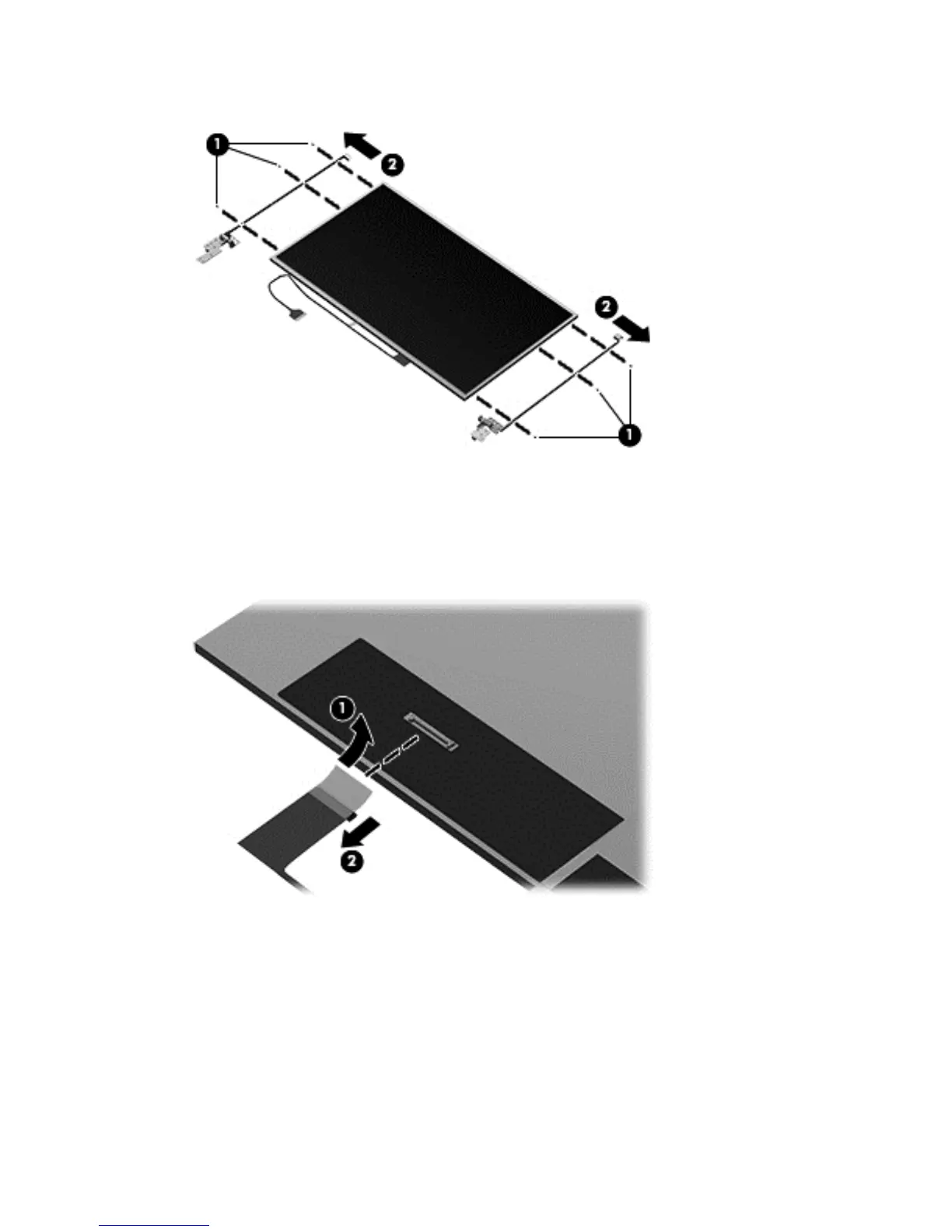

18. Remove the display hinges (2).
19. If it is necessary to remove the display/webcam cable assembly, disconnect the display panel
cable from the rear of the display panel by lifting the tape (1) that covers the connector, and
disconnecting the cable from the panel (2).
The display/webcam cable assembly is available in the Cable Kit, spare part number
721510-001.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
