17. Remove the display hinges and panel from the display enclosure.

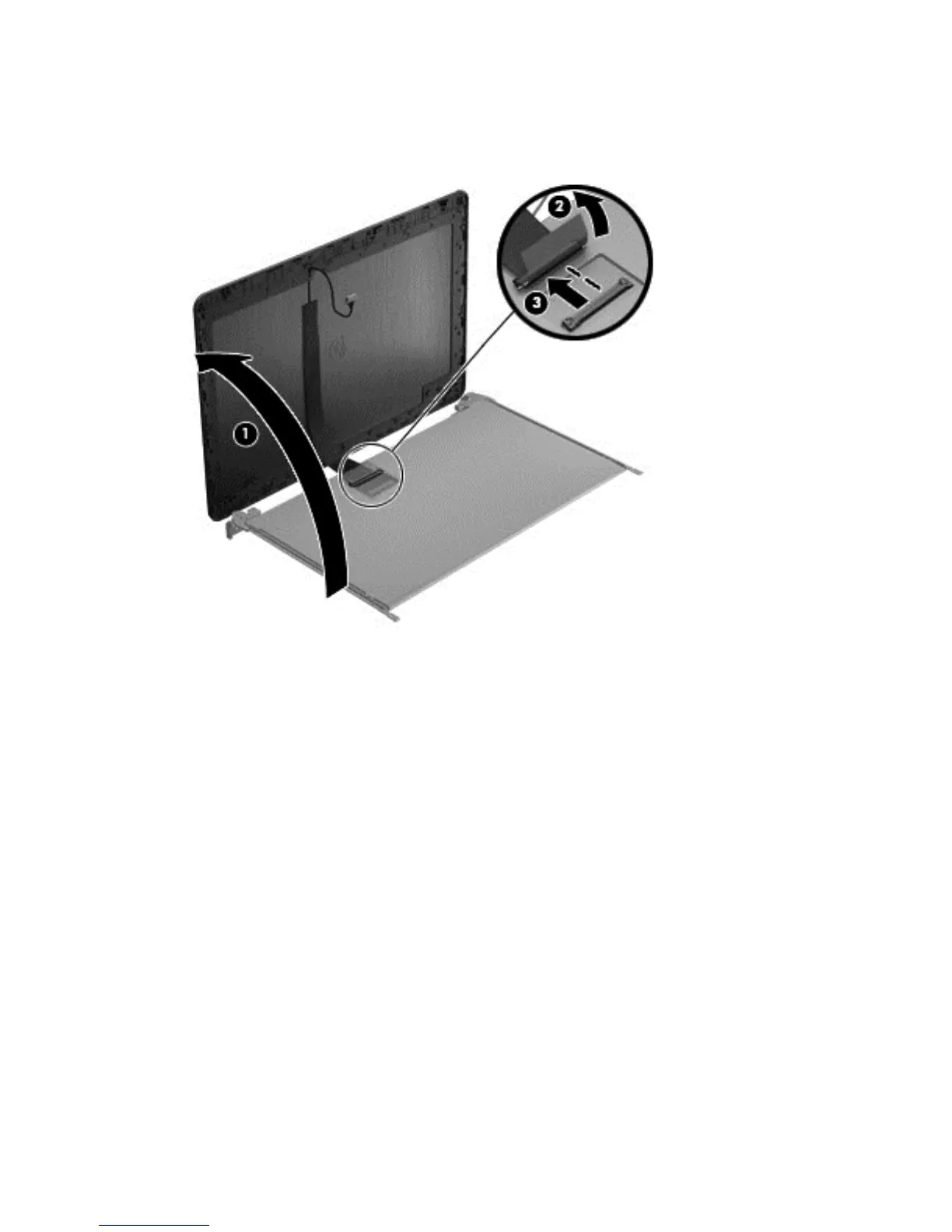

18. Disconnect the display panel cable by rotating the display enclosure (1), lifting the tape (2) that
covers the connector, and disconnecting the cable from the panel (3).
19. Remove the three Phillips PM2.0×3.0 screws (1) that secure each display hinge to the display
panel.
118 Chapter 4 Removal and replacement procedures
