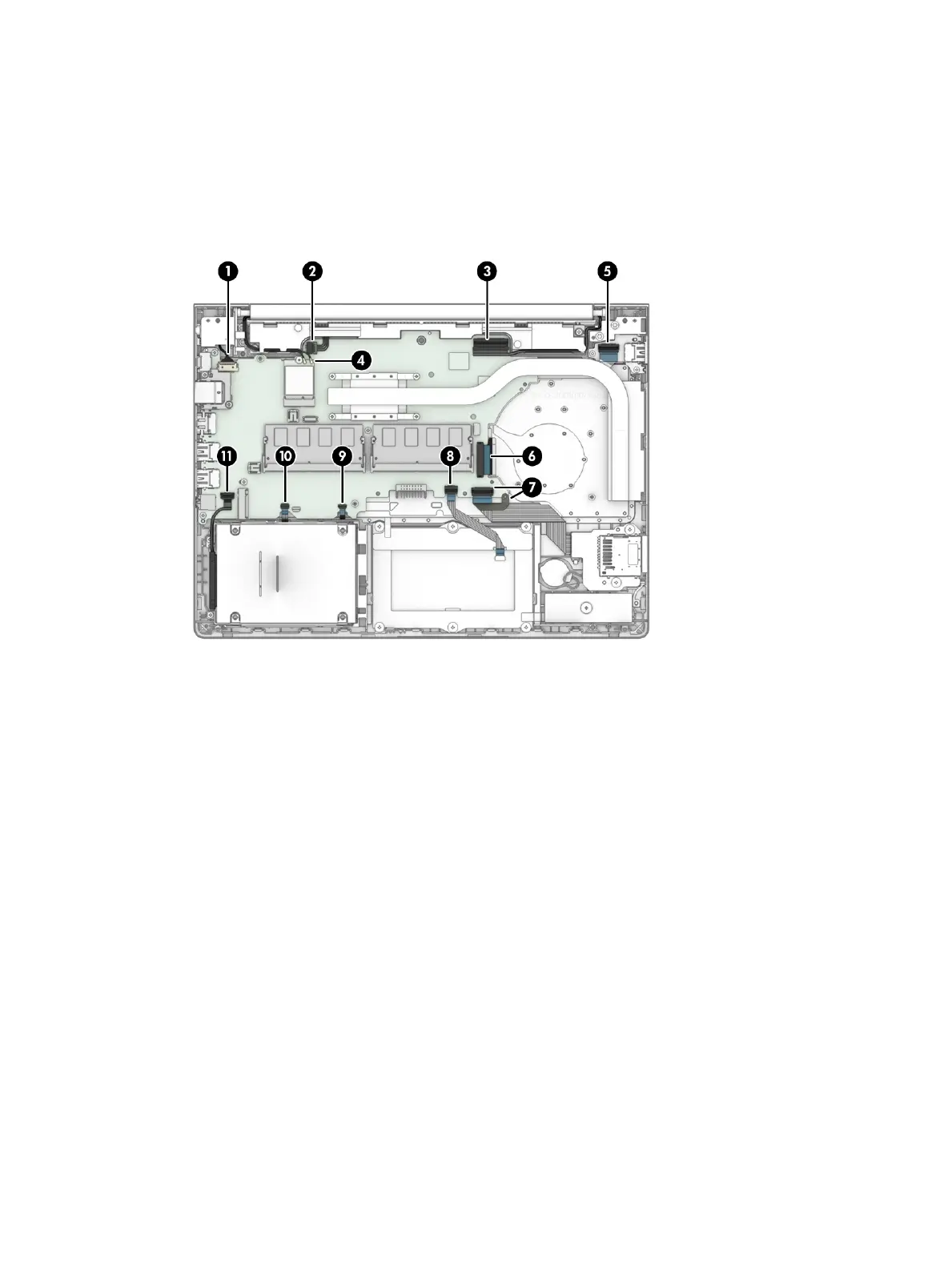

(7) Card reader cable (ZIF) and tape
(8) Touchpad cable (ZIF)
(9) Keyboard backlight cable (ZIF)
(10) Fingerprint sensor cable (ZIF)
(11) Hard drive cable (ZIF)
2. Remove the four Phillips M2.0 × 4.0 screws (1) that secure the system board to the computer.
3. Remove the two Phillips M2.0 × 2.5 screws (2) that secure the system board to the computer.
4. Remove the bracket that covers the USB-Type C port (3).
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
