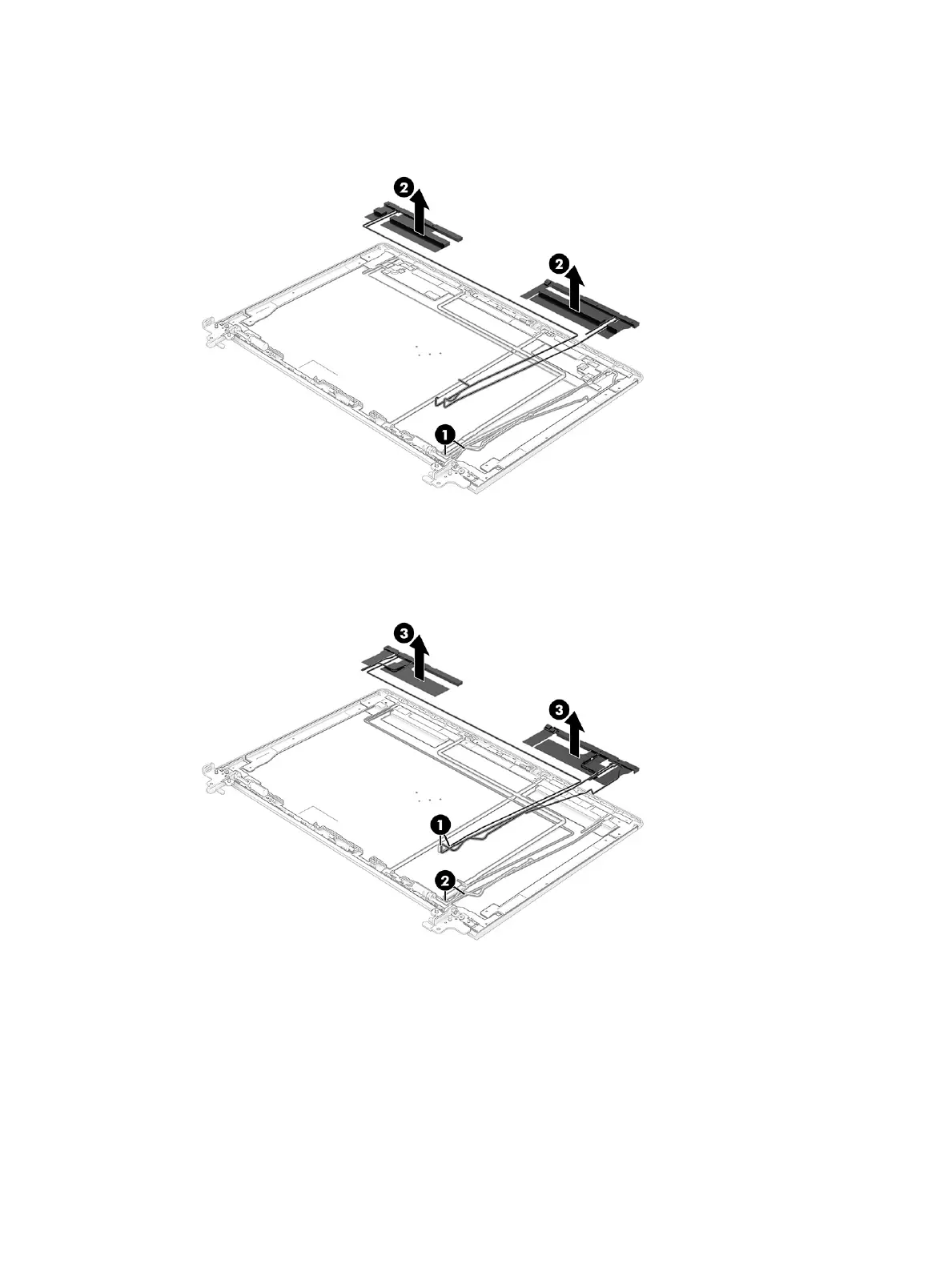

14. If you need to remove the WLAN antennas and cables, remove the cables from the plastic clips at the
bottom-right and the clips on the inside of the display rear cover (1), and then peel the antennas o the
cover (2). The WLAN antennas and cables are available as spare part number N00108-001.
15. If you need to remove the WWAN antennas and cables, remove the cables (1) from the inside of the
display rear cover (2), and then peel the antennas o the cover (3). The WWAN antennas and cables are
available as spare part number N00110-001.
Display rear covers are available as the following spare part numbers:
N01277-001: Models with a 250 nit panel
N01278-001: Models with a 400 nit panel
N01279-001: Models with WWAN
N01280-001: Models with a privacy panel
Reverse this procedure to reassemble and replace the display assembly.
68 Chapter 6 Removal and replacement procedures for authorized service provider parts
