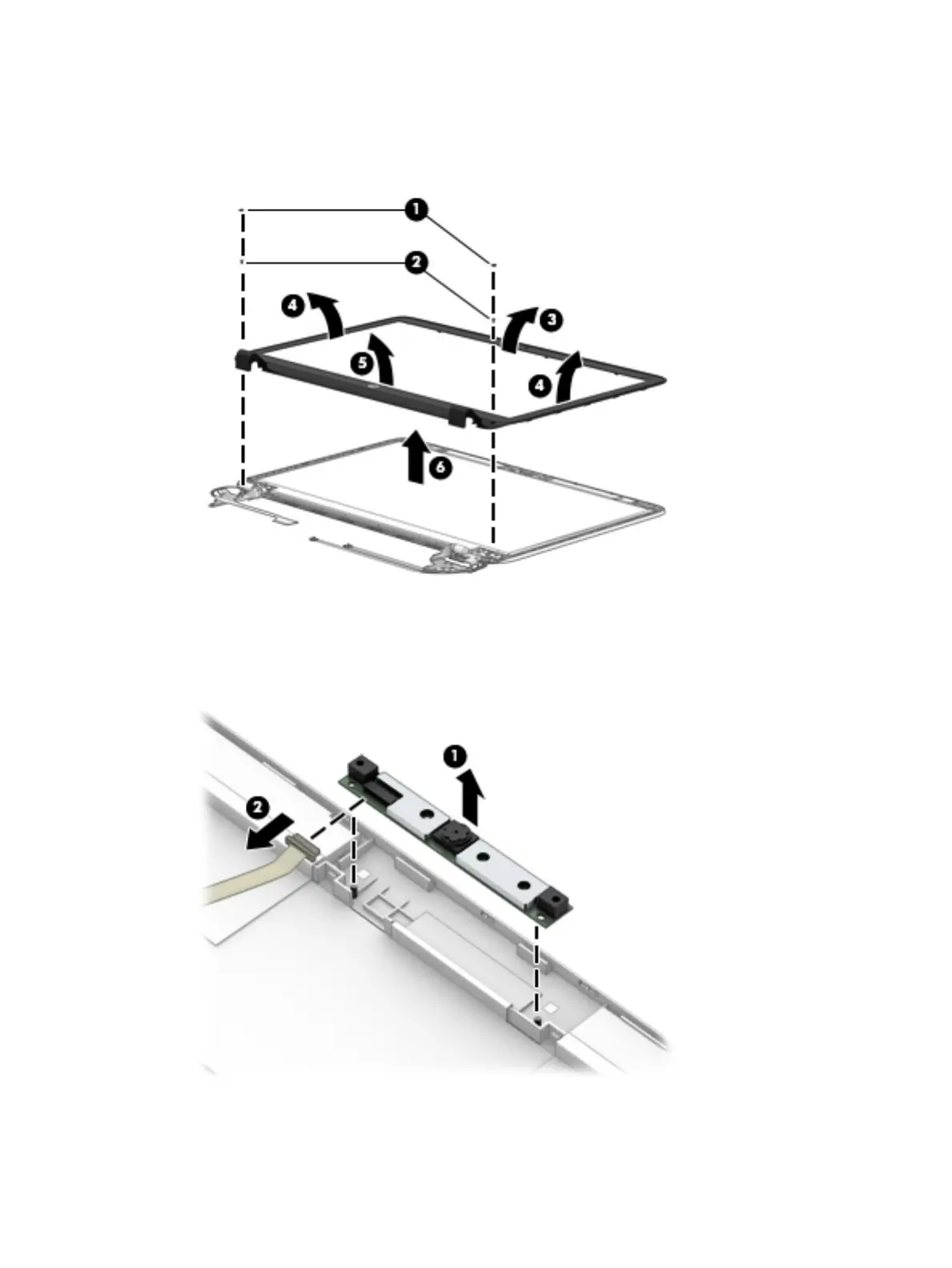

11. Remove the display bezel (6).
The display bezel is available using spare part number 768125-001 for models with a webcam and
768126-001 for models without a webcam. Display bezel mylar screw covers are available in the Rubber
Kit, spare part number 768136-001.
12. If it is necessary to replace the webcam or microphone module, gently pull the module away from the
double-sided tape on the display enclosure (1), and then disconnect the cable from the module (2).
The webcam module is available using spare part number 767457-001 for HD models or 807958-001
for Lync models. The microphone module is available using spare part number 773563-001.
Component replacement procedures 91
