Power connector and cable
Description Spare part number
Power connector and cable 767432-001
Before removing the power cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 36).
5. Remove the following components:
a. Service doors (see Service door on page 37).
b. Keyboard (see Keyboard on page 49)
c. Hard drive (Hard drive on page 39)
d. Optical drive (Optical drive on page 43)
e. Top cover (see Top cover on page 58)
f. Display assembly (see Display assembly on page 88)

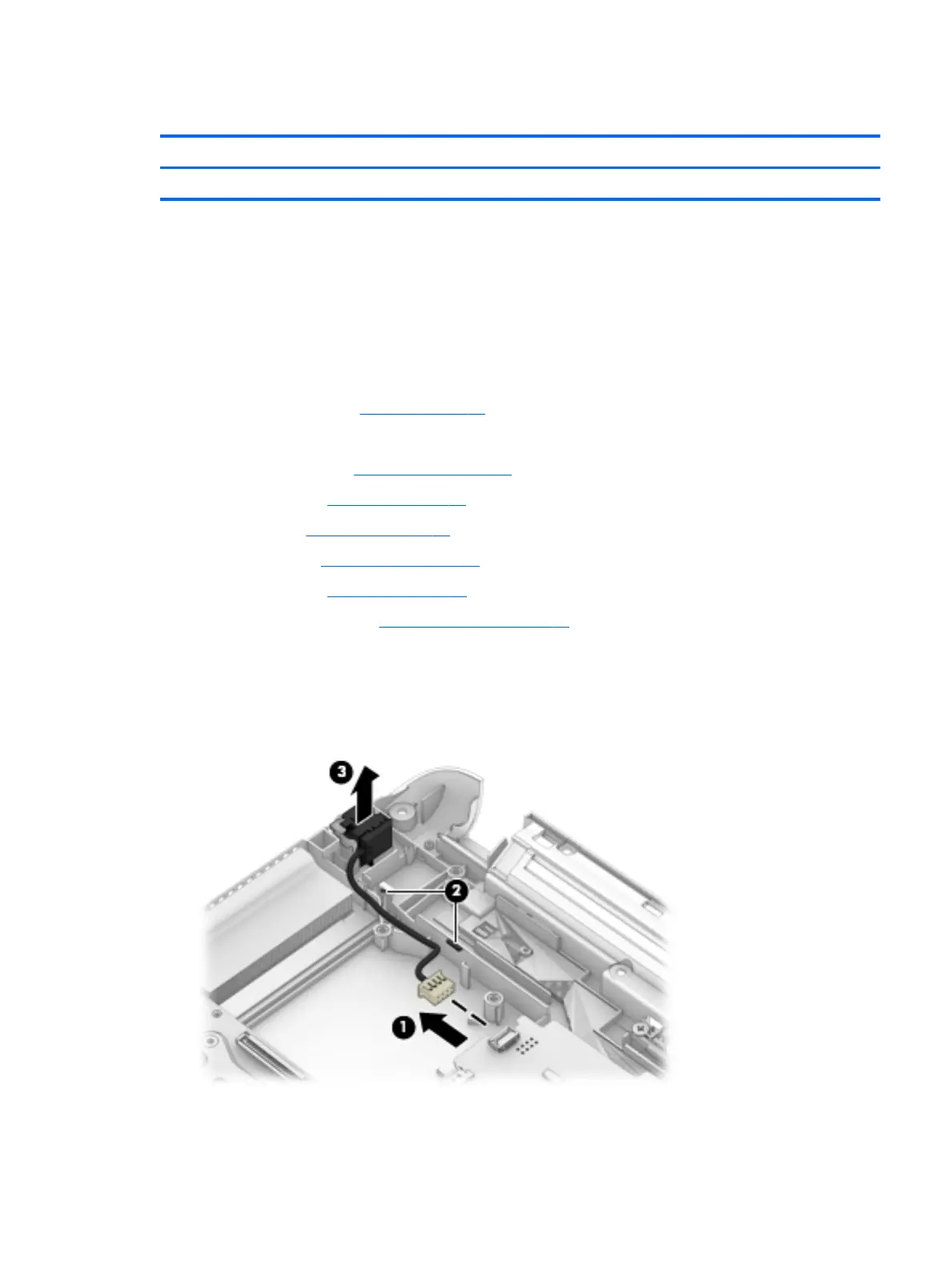

Remove the power cable:
1. Disconnect the cable from the bottom of the system board (1).
2. Remove the cable from the clips built into the computer (2), and then lift the power cable from the
computer (3).
Reverse this procedure to install the power cable.
Component replacement procedures 95
