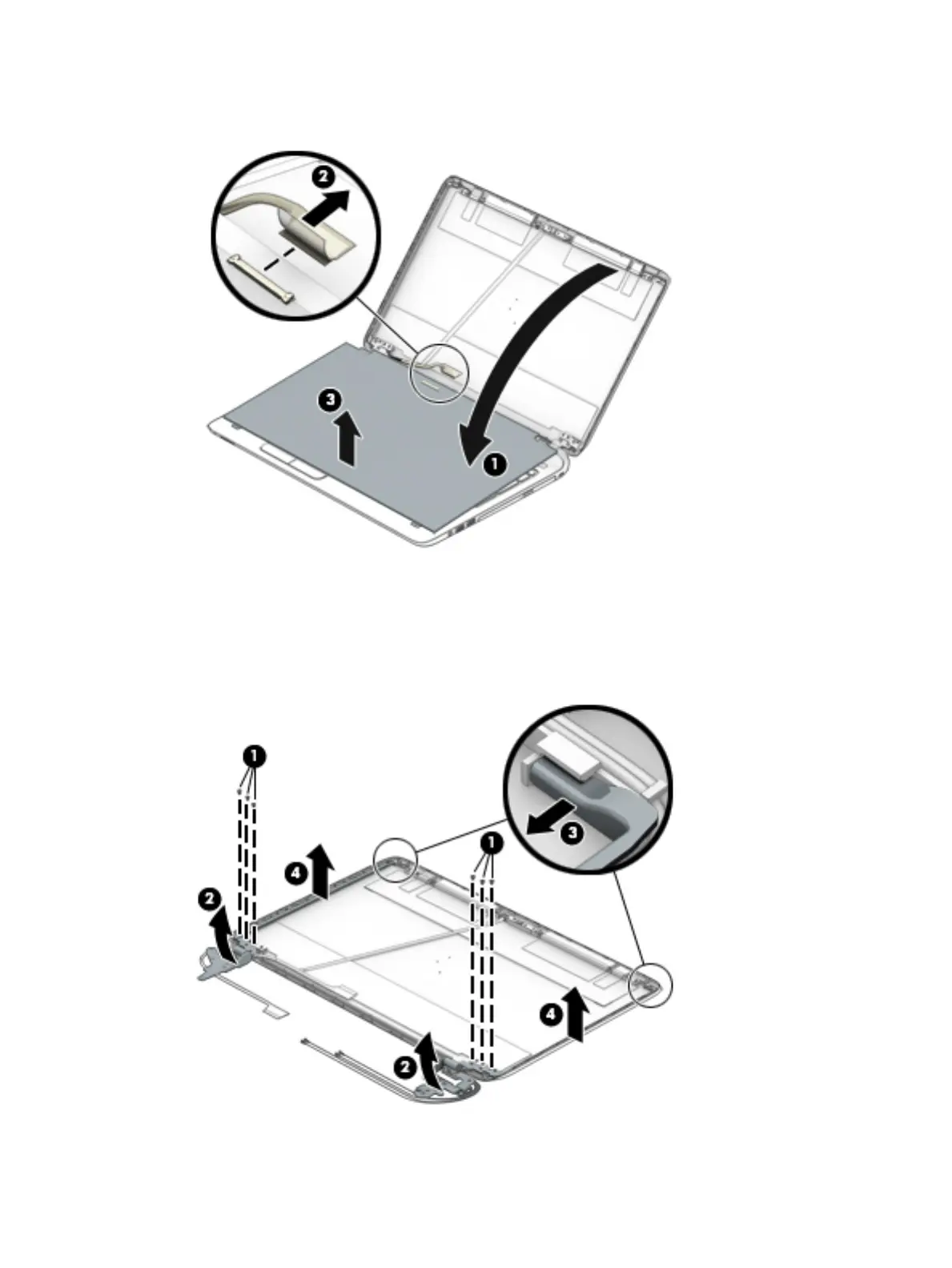

9. Rotate the display panel onto the keyboard (1), disconnect the display cable from the rear of the panel
(2), and then remove the display panel (3) from the enclosure.
10. If it is necessary to replace the display hinges, remove the 6 Phillips PM2.0×3.0 screws (1) that secure
the display hinges to the display enclosure.
11. Lift the bottom of the hinges upward (2), pull the top of the hinges out from under the tabs (3), and then
remove the display hinges from the display enclosure (4).
Display hinges are available in the Display Hinge Kit using spare part number 768129-001.
Component replacement procedures 57
