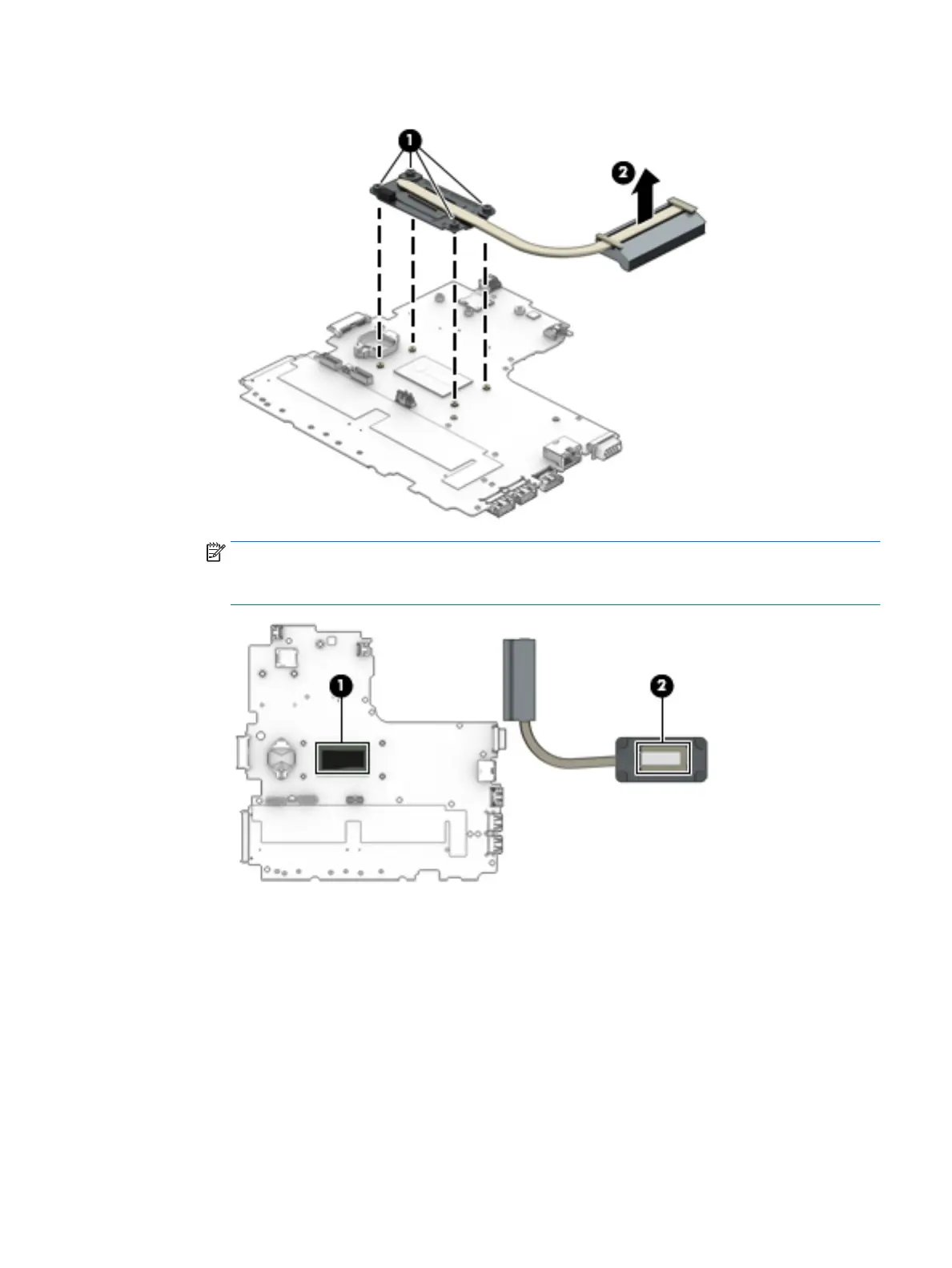

b. Lift the heat sink from the system board (2).
NOTE: For UMA models, thoroughly clean thermal material from the surfaces of the system
board component (1) and the heat sink (2) each time you remove the heat sink. All heat sink and
processor spare part kits include thermal material.
Reverse this procedure to install the heat sink assembly.
Component replacement procedures 87
